Package Summary
Tags | No category tags. |
Version | 2.0.3 |
License | BSD 3-Clause |
Build type | AMENT_CMAKE |
Use | RECOMMENDED |
Repository Summary
Checkout URI | https://github.com/analogdevicesinc/tmcl_ros2.git |
VCS Type | git |
VCS Version | humble |
Last Updated | 2025-04-07 |
Dev Status | MAINTAINED |
CI status | No Continuous Integration |
Released | RELEASED |
Tags | No category tags. |
Contributing |
Help Wanted (0)
Good First Issues (0) Pull Requests to Review (0) |
Package Description
Additional Links
Maintainers
- Analog Devices
Authors
adi_tmcl
adi_tmcl (previously tmcl_ros2) is the official ROS2 Driver for ADI Trinamic Motor Controllers (TMC) that uses Trinamic Motion Control Language (TMCL) protocol.
Background
- Supported TMC boards:
- TMCM-343,
- TMCM-351,
- TMCM-0930,
- TMCM-1140, PD-1140,
- TMCM-1160, PD-1160,
- TMCM-1180, PD-1180,
- TMCM-1230,
- TMCM-1231,
- TMCM-1240,
- TMCM-1241 *, PD-1241 *,
- TMCM-1260 *, PD-1260 *,
- TMCM-1270, PD-1270,
- TMCM-1276, PD-1276,
- TMCM-1278, PD-1278,
- TMCM-1311,
- TMCM-1316,
- PD-1378,
- TMCM-1617 *,
- TMCM-1633,
- TMCM-1636 *,
- TMCM-1637,
- TMCM-1638,
- PD-1670,
- TMCM-2611 *,
- TMCM-3110,
- TMCM-3212,
- TMCM-3230,
- TMCM-3351,
- TMCM-6110,
- TMCM-6212,
- TMCM-6214 *
- Supported communication interface and interface driver: CAN (SocketCAN)
- Supported ROS2 and OS distro: Humble (Ubuntu 22.04)
- Supported platform: Intel x86 64-bit (amd64)
- Supported setup: Single/Multiple TMC in Single/Multiple CAN channel (namespace-managed)
:memo: Note: Tested boards are marked with asterisk(*), PD stands for PanDrive, which combines the motor and the Trinamic board in a single package. TMCM files in this ROS package should also be compatible with the PD version of the hardware. Contact the Developers for any issues encountered.
Hardware
For the tested TMCM-1636 setup, the following are used:
- 1 x TMCM-1636
- 1 x QBL4208-61-04-013 BLDC motor
- 1 x External 24V power supply
- 1 x CAN USB Cable (w/SocketCAN support) - with 120 ohm termination resistors
Also the following:
- PWR/GND from board to external 24V power supply
- 5-pin Motor connector (Hall) (see Note below)
- 5-pin Motor connector (Encoder) (see Note below)
- 40 pin Molex connectors
:memo: Note: Check Section 4 of QBL4208-x-1k Datasheet for motor wiring references.
The image below shows the connection diagram of the setup (with labels):

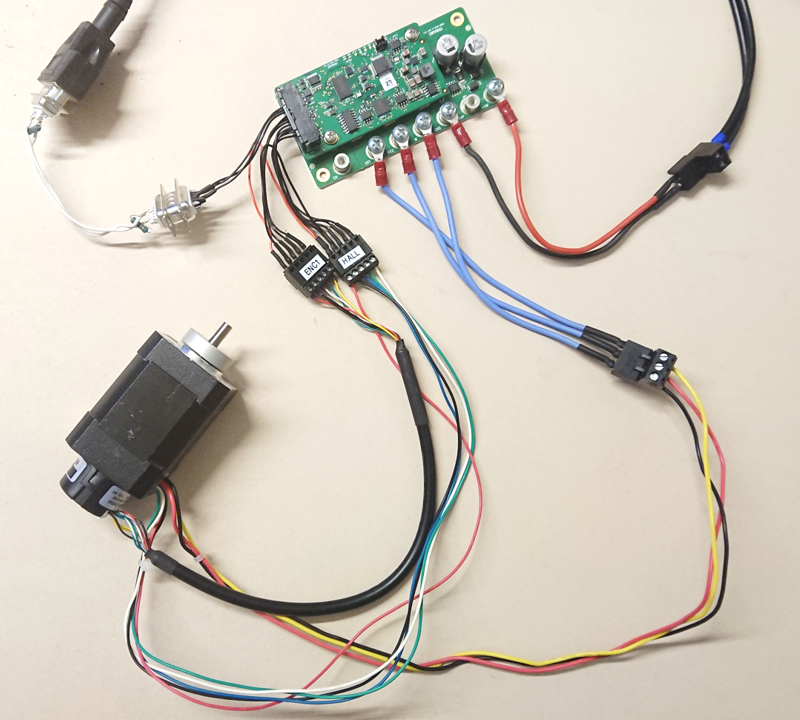

The image below shows the actual setup used (for reference):
Software
Software Architecture
Software Dependencies
Assumptions before building this package:
- Installed ROS2 Humble. If not, follow these steps.
- Setup workspace (with workspace folder named as “ros2_ws”). If not, follow these steps.
Clone
In the website:
- Make sure that the branch dropdown is set to “humble”.
- Click the “Clone” or “Code” button, then copy the SSH or HTTPS link (eg, “*.git”).
In a terminal, do the following:
$ cd ~/ros2_ws/src
$ git clone <copied SSH o HTTPS link here> adi_tmcl #clones repo to "adi_tmcl" directory name
Build
```bash ########## [TERMINAL 1] ##########
Do proper exports first:
$ source /opt/ros//setup.bash
$ source /opt/ros/humble/setup.bash
Resolve any dependencies
$ cd ~/ros2_ws $ rosdep install -i –from-path src –rosdistro humble -y
File truncated at 100 lines see the full file
Changelog for package tmcl_ros2
2.0.3 (2024-11-13)
- Fix handling of incorrect parameter type and update header files to .hpp
- Contributors: Jamila Macagba
2.0.2 (2024-11-05)
- Added support for TMCM-1316
- Contributors: Jamila Macagba
2.0.1 (2024-07-15)
- Added support for TMCM-2611 Added support for TMCM-2611 Co-Authored-By: Christian Joseph Acar <<124771470+CAcarADI@users.noreply.github.com>> Co-Authored-By: Jamila Macagba <<124771486+jmacagba@users.noreply.github.com>>
- Update README.md Update README.md with mention of adi_tmcl and tmcl_ros2 Co-Authored-By: Jamila Macagba <<124771486+jmacagba@users.noreply.github.com>>
- Contributors: mmaralit-adi
2.0.0 (2023-11-21)
- Updated package name and TF values
- Updated to:
- Change package name from "tmcl_ros2" to "adi_tmcl" in preparation for ROS release
- Change TF values (default)
- Contributors: mmaralit-adi, jmacagba
1.0.2 (2023-10-27)
- Update LICENSE file
- Contributors: Jamila Macagba
1.0.1 (2023-10-10)
- Removed obsolete modules and updated analog.com references in README
- Updated to:
- Remove obsolete modules
- Update analog.com pages in README.md
- Update CMakeLists.txt to make sure other drivers that has same names as socket_can_wrapper will not cause conflicts
- Contributors: mmaralit-adi, jmacagba
1.0.0 (2023-09-27)
- Adding v1.0.0 of tmcl_ros2, ROS2, Humble
- Contains official ROS2 Driver for Trinamic Motor Controllers (TMC) that uses Trinamic Motion Control Language (TMCL) protocol
- Supported TMC boards: TMCM-1636, TMCM-1617, TMCM-1241, TMCM-1260, TMCM-6214
- Supported communication interface and interface driver: CAN (SocketCAN)
- Supported ROS and OS distro: Humble (Ubuntu 22.04)
- Supported platform: Intel x86 64-bit (amd64)
- Contributors: mmaralit-adi, jmacagba
Wiki Tutorials
Package Dependencies
Deps | Name |
---|---|
rclcpp | |
std_msgs | |
std_srvs | |
geometry_msgs | |
ament_cmake | |
rosidl_default_generators | |
ros2launch | |
rosidl_default_runtime | |
ament_lint_auto | |
ament_lint_common |
System Dependencies
Dependant Packages
Launch files
Messages
Plugins
Recent questions tagged adi_tmcl at Robotics Stack Exchange
