No version for distro humble showing jazzy. Known supported distros are highlighted in the buttons above.

dispatcher package from dispatcher repo

dispatcher

ROS Distro
jazzy

Package Summary

Version	0.4.4
License	Apache-2.0
Build type	AMENT_CMAKE
Use	RECOMMENDED

Repository Summary

Checkout URI	https://github.com/nasa-jpl/dispatcher.git
VCS Type	git
VCS Version	master
Last Updated	2026-09-05
Dev Status	MAINTAINED
Released	UNRELEASED
Contributing	Help Wanted (-) Good First Issues (-) Pull Requests to Review (-)

Package Description

Qt-based ROS 2 application for launching and monitoring ROS nodes and arbitrary processes.

Additional Links

Maintainers

Kristopher Wehage
Daniel Pastor

Authors

Dennis Wai
Alex Brinkman
Preston Rogers

README.md

Dispatcher

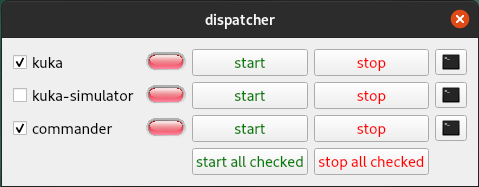

A Qt-based ROS 2 widget for starting, stopping, and monitoring both ROS nodes and arbitrary shell processes.

dispatcher

dispatcher builds its UI from a YAML file. Each configured item is launched in its own detached tmux session, and the terminal button can attach a gnome-terminal window to that session when available.

Runtime Parameters

The dispatcher executable uses the following ROS parameters:

Name	Type	Default	Description
`dispatcher_config_path`	`string`	`""`	Path to the dispatcher YAML file.
`initial_configuration`	`string`	`""`	Configuration name to select on startup.
`start_checked_on_startup`	`bool`	`false`	Start all checked process items after loading the initial configuration.
`ssh_timeout_sec`	`int`	`10`	Timeout used when building remote SSH commands.
`target_loop_rate_hz`	`double`	`100.0`	Main process/status polling rate.

YAML Configuration

The top-level dispatcher YAML supports:

Key	Required	Description
`workspace`	Yes	Workspace path used by ROS process items before sourcing `install/setup.bash`.
`nodes`	Yes	Process and category definitions rendered in the main panel.

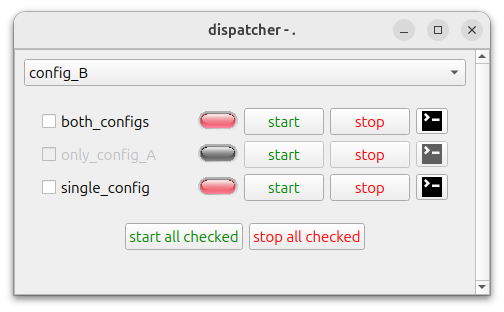

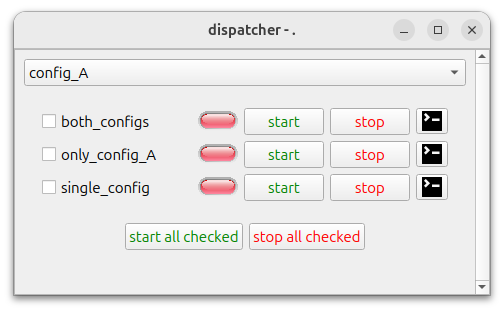

`configurations`	No	Named runtime configurations. Each entry may be a simple name or a map with `name`, `cmd_prefix`, `environment_variables`, and `icon`.
`cmd_prefix`	No	Default command prefix for the implicit `all` configuration.
`environment_variables`	No	Default environment variables for the implicit `all` configuration.
`hide_unconfigured_processes`	No	If true, items missing in the active configuration are hidden instead of disabled.
`scripts`	No	Script button definitions shown in the scripts panel.
`variables`	No	Variable selectors used for `$VARIABLE` command substitution.

Node Types

Each entry in nodes can be:

A ROS process item. If type is omitted, the item is treated as ROS by default.
A shell process item with type: shell.
A collapsible category with type: category and an items array. Entries in items follow the same rules, including the default to ROS when type is omitted.

Common item fields include:

Key	Description
`name`	UI label and tmux-session base name.
`cmd`	Command used for the implicit `all` configuration.
`configurations`	Per-configuration command definitions.
`start_checked`	Whether the item starts checked in the UI. Optional, defaults to `false`.
`stop_tmux_cmd`	Stop sequence sent to tmux. Optional, defaults to `C-C`.
`hostname` / `user`	Optional remote execution target for local commands or configuration entries.
`use_cmd_prefix`	Enables or disables command-prefix injection.
`use_environment_variables`	Enables or disables environment-variable injection.
`attach_on_start`	Opens a terminal automatically after launch.

ROS process items can additionally define node_name plus an optional namespace, or a ros_nodes array with the same monitoring fields for online-state monitoring. An omitted namespace resolves to the root namespace, so name: talker matches the graph’s /talker; a name that is already absolute, such as /fcat/fcat, carries its own namespace.

Shell process items use pgrep on the item name to infer online state.

Scripts and Variables

Script entries support:

Key	Description
`name`	Button label.
`cmd` or `configurations`	Script command definition.
`row`, `column`	Grid placement in the scripts panel.
`icon`	Optional Qt resource path for the button icon.
`use_terminal`	Whether to wrap execution in `gnome-terminal --`.

Variable entries support:

Key	Description
`name`	Variable name used in commands, for example `$FCAT_LOOP_RATE_HZ`.
`choices`	Selectable values exposed in the UI.

Examples

The following examples build incrementally from a minimal configuration to a full-featured setup. Each one corresponds to a YAML file in config/ and a screenshot in doc/.

ROS 2 Demos (runnable out of the box)

Four examples run without any custom packages, using only the demos that ship with ROS 2. Each is self-contained and includes an rqt_graph button. Install the demo packages if needed:

```bash sudo apt install ros-$ROS_DISTRO-demo-nodes-cpp \

File truncated at 100 lines see the full file

CHANGELOG

Changelog for package dispatcher

Forthcoming

0.4.4 (2026-09-05 02:08)

Merge pull request #6 from nasa-jpl/copilot/fix-bump-github-actions-job

Fix "bump" workflow: use pull_request_target so fork-based merges can push tags
Fix bump workflow: use pull_request_target to get write token for fork PRs

Co-authored-by: PastorD <<7848129+PastorD@users.noreply.github.com>>
Initial plan
Merge pull request #4 from PastorD/feature/start-checked-on-startup

Add checked-item startup parameter
improve config docs
fix category type default to match non-category behaviour
fix namespace resolution
add ros2 examples
Add checked-item startup parameter
Contributors: copilot-swe-agent[bot], Daniel Pastor

0.4.3 (2026-09-03 16:42)

Merge pull request #5 from nasa-jpl/update-authors

update authors
fix author name
update authors
Contributors: Daniel Pastor

0.4.2 (2026-08-31 07:32)

Merge pull request #3 from nasa-jpl/fix-rolling

Fix rolling
add changelo update
use target_link_libraries instead of deprecated ament_target_dependencies
Contributors: Daniel Pastor

0.4.0 (2026-06-28 20:40)

chore: bump version to 0.4.0 [skip ci]
Merge pull request #1 from nasa-jpl/github-ci add actions and workflows
add actions and workflows
Contributors: Daniel Pastor, github-actions[bot]

0.3.0 (2026-06-28 20:02)

Merge branch 'prepare-public-release' into 'master' update license to Apache. Readme corrections. Manually bump version See merge request robotics/ros2/dispatcher!4
update license to Apache. Readme corrections. Manually bump version
Merge branch 'feature/script_categories' into 'master' Add categories to scripts See merge request robotics/ros2/dispatcher!3
doc image resize
Updated docs to mention script categories
Added attribution-free icons
categories extended to scripts
Contributors: Daniel Pastor, Daniel Pastor Moreno, jongreen

0.2.0 (2026-04-24)

manual version bump
Merge branch 'improve_readme' into 'master' Improve readme See merge request robotics/ros2/dispatcher!2
fix tests
add more examples
add more examples with screenshots
make start checked optional

File truncated at 100 lines see the full file

Package Dependencies

Deps	Name
	ament_cmake
	ament_lint_auto
	ament_lint_common
	ament_cmake_gtest
	rclcpp
	std_msgs
	sensor_msgs
	std_srvs
	builtin_interfaces

System Dependencies

Name
tmux
yaml-cpp
qtbase5-dev
libqt5-opengl-dev

Dependant Packages

No known dependants.

Launch files

No launch files found

Messages

No message files found.

Services

No service files found

Plugins

No plugins found.
