No version for distro humble showing jazzy. Known supported distros are highlighted in the buttons above.

dispatcher repository

dispatcher

ROS Distro
jazzy

Repository Summary

Checkout URI	https://github.com/nasa-jpl/dispatcher.git
VCS Type	git
VCS Version	master
Last Updated	2026-09-05
Dev Status	MAINTAINED
Released	UNRELEASED
Contributing	Help Wanted (-) Good First Issues (-) Pull Requests to Review (-)

Packages

Name	Version
dispatcher	0.4.4

README

Dispatcher

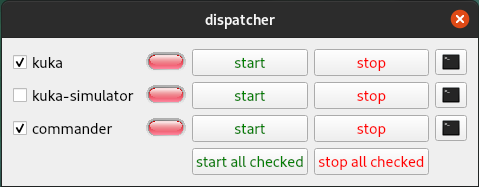

A Qt-based ROS 2 widget for starting, stopping, and monitoring both ROS nodes and arbitrary shell processes.

dispatcher

dispatcher builds its UI from a YAML file. Each configured item is launched in its own detached tmux session, and the terminal button can attach a gnome-terminal window to that session when available.

Runtime Parameters

The dispatcher executable uses the following ROS parameters:

Name	Type	Default	Description
`dispatcher_config_path`	`string`	`""`	Path to the dispatcher YAML file.
`initial_configuration`	`string`	`""`	Configuration name to select on startup.
`start_checked_on_startup`	`bool`	`false`	Start all checked process items after loading the initial configuration.
`ssh_timeout_sec`	`int`	`10`	Timeout used when building remote SSH commands.
`target_loop_rate_hz`	`double`	`100.0`	Main process/status polling rate.

YAML Configuration

The top-level dispatcher YAML supports:

Key	Required	Description
`workspace`	Yes	Workspace path used by ROS process items before sourcing `install/setup.bash`.
`nodes`	Yes	Process and category definitions rendered in the main panel.

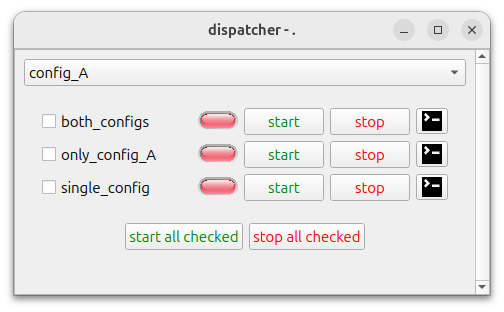

`configurations`	No	Named runtime configurations. Each entry may be a simple name or a map with `name`, `cmd_prefix`, `environment_variables`, and `icon`.
`cmd_prefix`	No	Default command prefix for the implicit `all` configuration.
`environment_variables`	No	Default environment variables for the implicit `all` configuration.

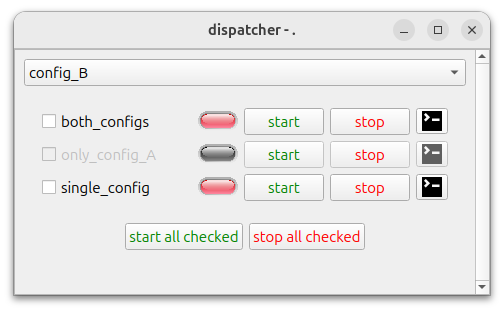

`hide_unconfigured_processes`	No	If true, items missing in the active configuration are hidden instead of disabled.
`scripts`	No	Script button definitions shown in the scripts panel.
`variables`	No	Variable selectors used for `$VARIABLE` command substitution.

Node Types

Each entry in nodes can be:

A ROS process item. If type is omitted, the item is treated as ROS by default.
A shell process item with type: shell.
A collapsible category with type: category and an items array. Entries in items follow the same rules, including the default to ROS when type is omitted.

Common item fields include:

Key	Description
`name`	UI label and tmux-session base name.
`cmd`	Command used for the implicit `all` configuration.
`configurations`	Per-configuration command definitions.
`start_checked`	Whether the item starts checked in the UI. Optional, defaults to `false`.
`stop_tmux_cmd`	Stop sequence sent to tmux. Optional, defaults to `C-C`.
`hostname` / `user`	Optional remote execution target for local commands or configuration entries.
`use_cmd_prefix`	Enables or disables command-prefix injection.
`use_environment_variables`	Enables or disables environment-variable injection.
`attach_on_start`	Opens a terminal automatically after launch.

ROS process items can additionally define node_name plus an optional namespace, or a ros_nodes array with the same monitoring fields for online-state monitoring. An omitted namespace resolves to the root namespace, so name: talker matches the graph’s /talker; a name that is already absolute, such as /fcat/fcat, carries its own namespace.

Shell process items use pgrep on the item name to infer online state.

Scripts and Variables

Script entries support:

Key	Description
`name`	Button label.
`cmd` or `configurations`	Script command definition.
`row`, `column`	Grid placement in the scripts panel.
`icon`	Optional Qt resource path for the button icon.
`use_terminal`	Whether to wrap execution in `gnome-terminal --`.

Variable entries support:

Key	Description
`name`	Variable name used in commands, for example `$FCAT_LOOP_RATE_HZ`.
`choices`	Selectable values exposed in the UI.

Examples

The following examples build incrementally from a minimal configuration to a full-featured setup. Each one corresponds to a YAML file in config/ and a screenshot in doc/.

ROS 2 Demos (runnable out of the box)

Four examples run without any custom packages, using only the demos that ship with ROS 2. Each is self-contained and includes an rqt_graph button. Install the demo packages if needed:

```bash sudo apt install ros-$ROS_DISTRO-demo-nodes-cpp \

File truncated at 100 lines see the full file
