autoware_perception_rviz_plugin

Purpose

It is an rviz plugin for visualizing the result from perception module. This package is based on the implementation of the rviz plugin developed by Autoware.Auto.

See Autoware.Auto design documentation for the original design philosophy. [1]

Input Types / Visualization Results

DetectedObjects

Input Types

Visualization Result

Customizable Features

These options are shared by the DetectedObjects, TrackedObjects and PredictedObjects displays.

• Color: a single color applied to every class by default.
• Per Class Color: when enabled, each class is drawn with its own color from the per-class color groups nested under this toggle, instead of the single Color above. When disabled (the default), the single Color is used for all classes. Changes take effect on the next received message. Per-class colors do not affect predicted-path colors, which encode per-object identity from the UUID.
• Alpha: opacity shared by all object colors (both the single Color and the per-class colors).

TrackedObjects

Input Types

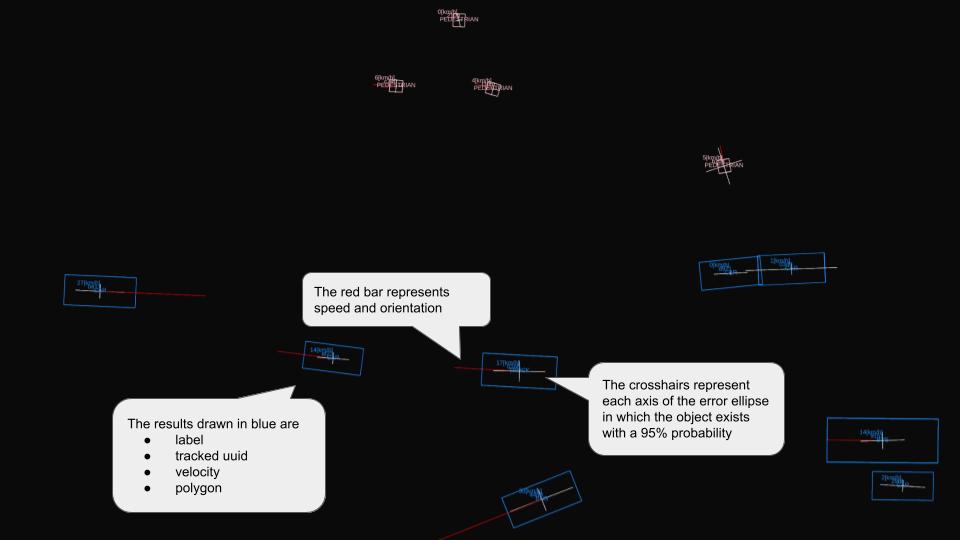

Visualization Result

Overwrite tracking results with detection results.

PredictedObjects

Input Types

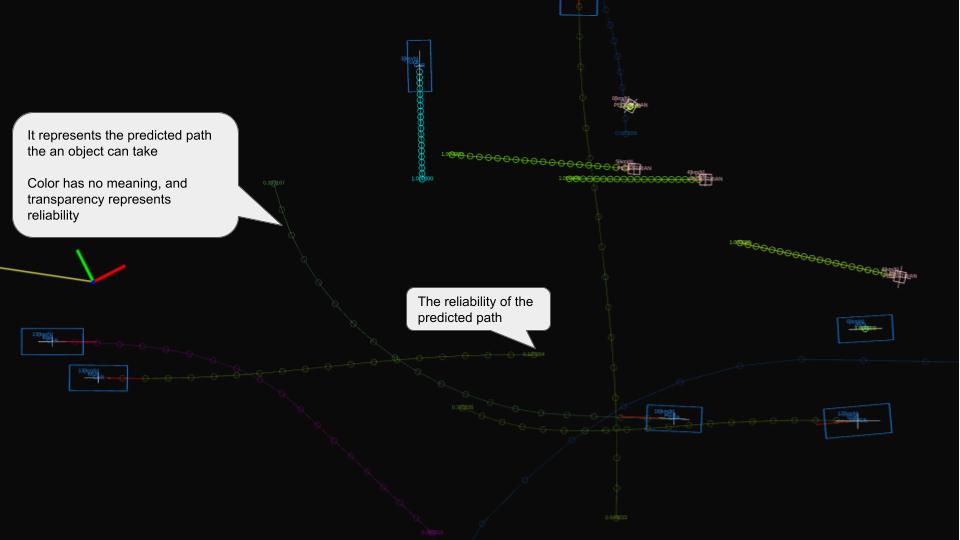

Visualization Result

Overwrite prediction results with tracking results.

Mesh Visualization

For all object types mentioned above it is possible to additionally visualize a mesh file for each object based on its class. For this the mesh namespace can be activated in RViz. For cars the visualization dynamically switches between a sedan and SUV model, based on the ratio between height and length.

Visualization Result

Visualization of only the mesh files for different vehicle types, pedestrians and cyclists.

Customizable Features

• Set visualization offset for predicted objects (n steps in to the future)
• Visualize vehicle lights (brake, left indicator, right indicator)

TrafficLight

Input Types

Visualization Result

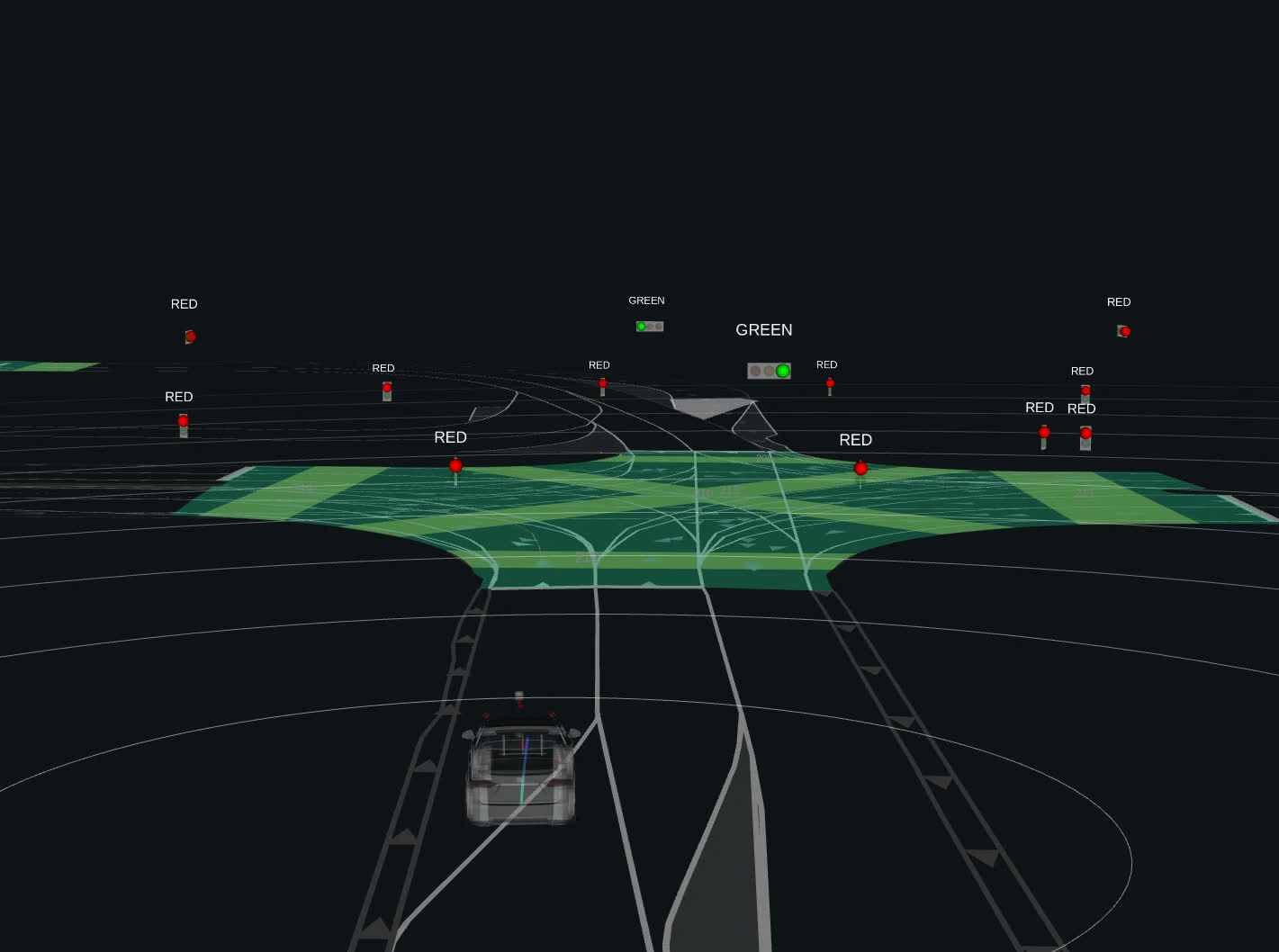

The plugin visualizes traffic light states in two ways:

1. Text display showing the current state (RED, AMBER, GREEN, directional arrows)
2. 3D spheres representing the light bulbs, colored according to their state

Customizable Features

File truncated at 100 lines see the full file
