3-D Lidar Extension for Mujoco

Lidar

This sensor uses ray casting to simulate lidar.

A lidar sensor is associated with a site and finds the nearest collision points from the site along a set of vectors. The vectors are determined by the size and field of view parameters.

The sensor is parametrizable with the following:

  1. Horizontal resolution (size[0]). positive integer
  2. Vertical resolution (size[1]). positive integer
  3. Horizontal field-of-view (fov[0]). positive float in (0, 2 $\pi$.] radians
  4. Vertical field-of-view(fov[1]). positive float in (0, $\pi$] radians
  5. Maximum Range. positive float greater than 0.0 (m)
  6. Minimum Range. positive float greater than 0.0 (m) (Optional, defaults to 0.0)
  7. Update Rate. positive float greater than 0.0 (Hz) (Optional, defaults to 0.0)
    • Note. This may be removed in future versions after the interval attribute is available for sensors.
  8. Async. boolean int (0 for false, non-zero for true) (Optional, defaults to 0)
  9. Geom Group(s). space-separated list of integers in [0, 5] (Optional, defaults to unset, which raycasts against every group)
    • If set, only geoms belonging to one of the listed groups are considered. This is useful for restricting the lidar to a model’s collision geoms (e.g. group="3") so it ignores visual-only geometry, which both avoids spurious returns and reduces raycasting cost. Multiple groups may be listed, e.g. value="2 3".

Field of view should always be in radians regardless of the compiler options.

The sensor’s own body (i.e. the body the sensor’s site is attached to) is always excluded from raycasting, the same way MuJoCo’s native rangefinder sensor excludes its own body. This means a lidar’s site can safely be placed anywhere on or inside its own housing geometry without the sensor detecting itself.

The horizontal fov is divided by the horizontal resolution to compute the number of azimuth angles. The vertical fov is divided by the vertical resolution to compute the number of elevation angles. Each azimuth/elevation pair defines a vector. The distance result is the set of distances to collision from the site origin along that vector.

These parameters are passed as extension config attributes:

<mujoco>
  <extension>
    <plugin plugin="mujoco.sensor.lidar"/>
  </extension>
  ...
  <sensor>
    <plugin name="lidar" plugin="mujoco.plugin.lidar" objtype="site" objname="lidar_sensor">
      <config key="size" value="360 10"/>
      <config key="fov" value="6.2832 0.7854"/>
      <config key="max_range" value="13.0"/>
      <config key="min_range" value="1.0"/>
      <config key="update_rate" value="1.0"/>
      <config key="async" value="0"/>
      <config key="geom_group" value="3"/>
    </plugin>
  </sensor>
</mujoco>

Note the following:

  • The dimensionality of the sensor output is size_x *size_y.
  • objtype="site" objname="lidar" specify that the sensor is associated with a site, and the name of the specific site.
  • Field-of-view angles are always in radians.
  • If async is specified, lidar computations are done in the background and data will be delayed.
  • If geom_group is omitted, every geom in the model is a raycast candidate (other than the sensor’s own body, which is always excluded). Set it to restrict raycasting to one or more geom groups, e.g. 3 to match a model’s collision geom class, or 2 3 to include two groups.

Example model

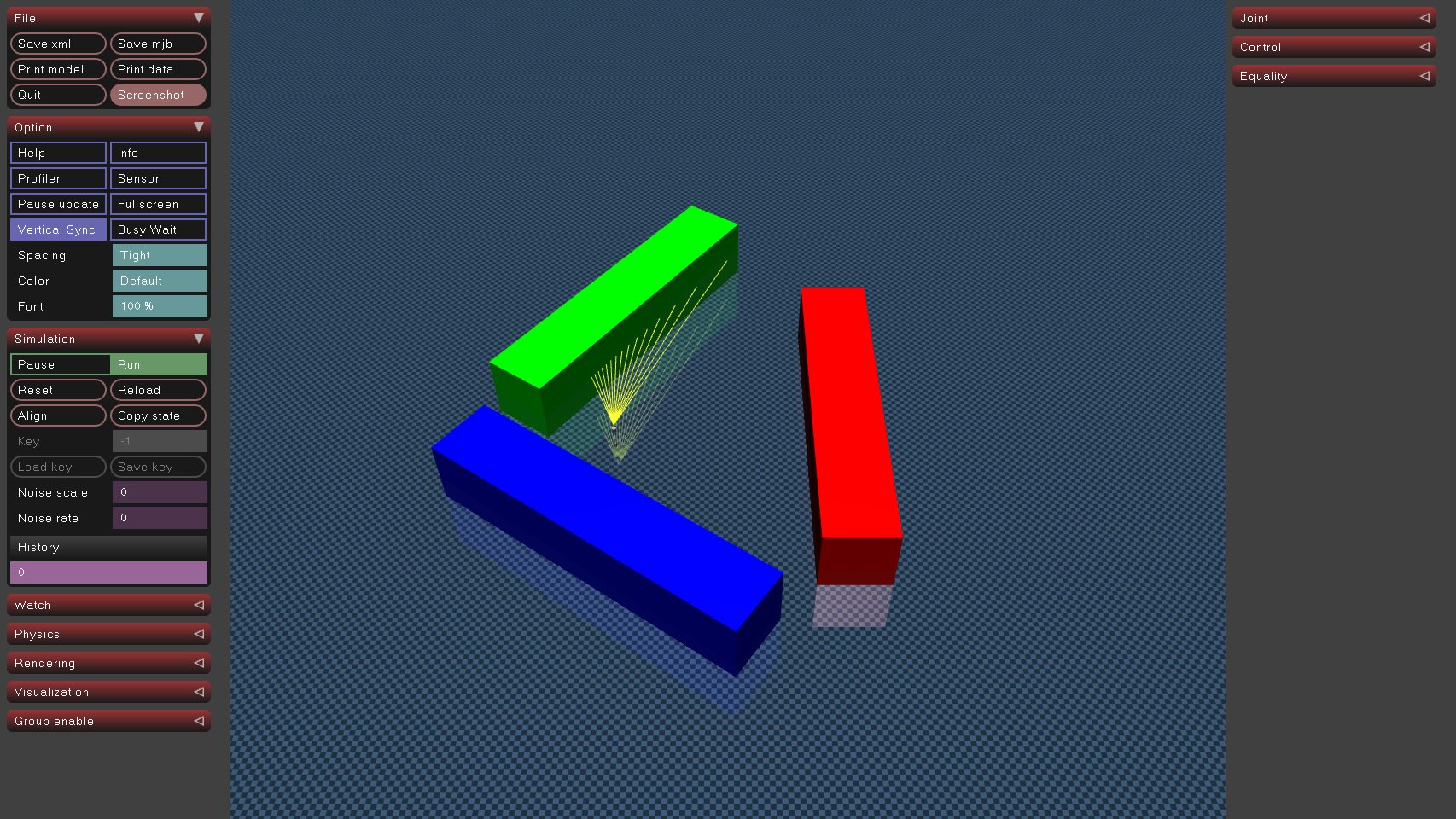

Lidar with: horizontal fov = 45 deg, vertical fov = 0, horizontal size = 15, vertical size = 1

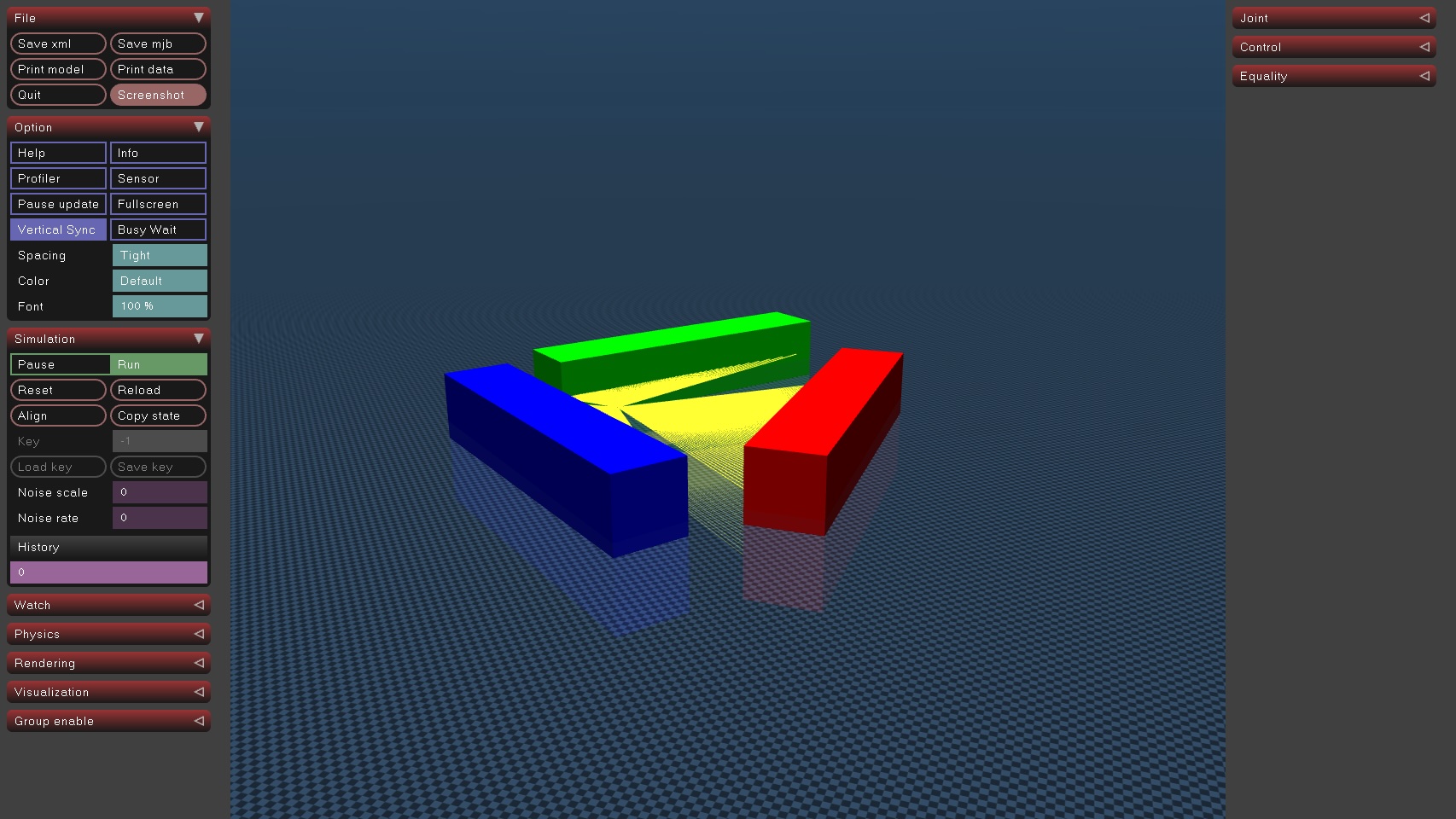

Lidar with: horizontal fov = 360 deg, vertical fov = 0, horizontal size = 360, vertical size = 1

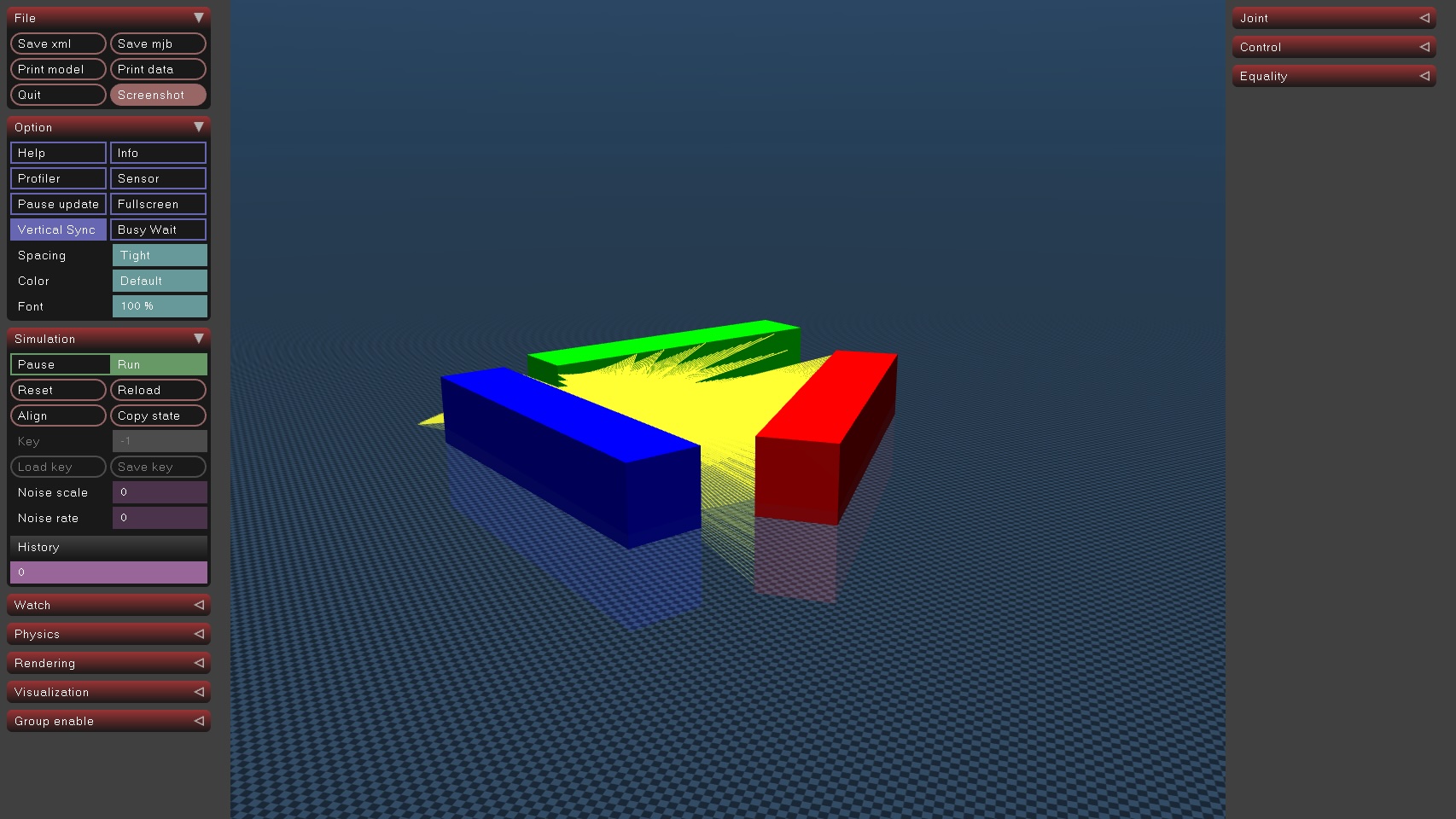

Lidar with: horizontal fov = 360 deg, vertical fov = 45, horizontal size = 360, vertical size = 4

See lidar.xml to play with the model above.

Standalone Build

This package is intended to be build alongside the mujoco_ros2_control packages.

File truncated at 100 lines see the full file
