slam_toolbox repository

Repository Summary

Checkout URI https://github.com/SteveMacenski/slam_toolbox.git
VCS Type git
VCS Version dashing-devel
Last Updated 2019-10-17
Dev Status DEVELOPED
Released RELEASED

Packages

Name Version
slam_toolbox 2.0.2

README

Slam Toolbox

DockerHub Build Status
Build Farm Build Status

NOTE: ROS2 Port of Slam Toolbox is still experimental. Known on-going work: - Interactive markers need to be ported to ROS2 and integrated - Panel plugins need to be ported to ROS2 to test and ship the rviz plugin

Introduction

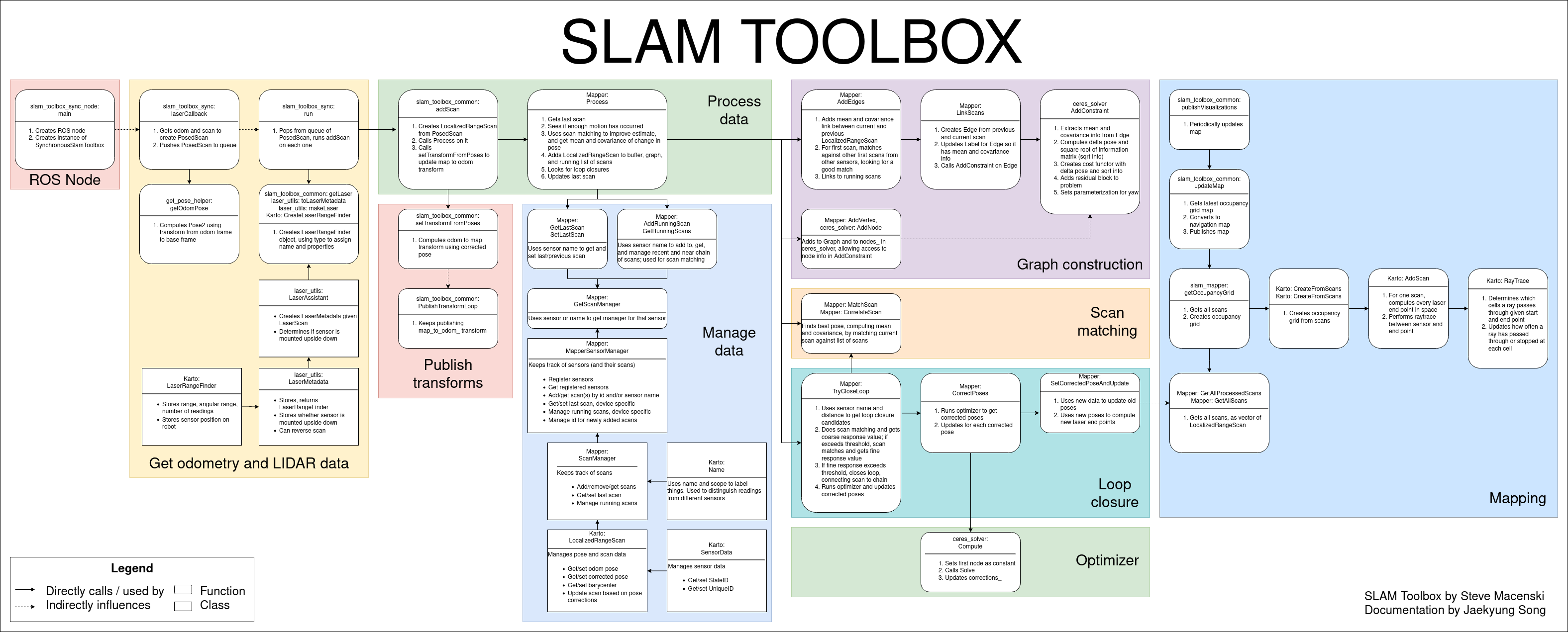

Slam Toolbox is a set of tools and capabilities for 2D SLAM built by Steve Macenski while at Simbe Robotics, maintained whil at Samsung Research, and largely in his free time.

This project contains the ability to do most everything any other available SLAM library, both free and paid, and more. This includes: - Ordinary point-and-shoot 2D SLAM mobile robotics folks expect (start, map, save pgm file) with some nice built in utilities like saving maps - Continuing to refine, remap, or continue mapping a saved (serialized) pose-graph at any time - life-long mapping: load a saved pose-graph continue mapping in a space while also removing extraneous information from newly added scans - an optimization-based localization mode built on the pose-graph. Optionally run localization mode without a prior map for "lidar odometry" mode with local loop closures - synchronous and asynchronous modes of mapping - kinematic map merging (with an elastic graph manipulation merging technique in the works) - plugin-based optimization solvers with a new optimized Google Ceres based plugin - RVIZ plugin for interacting with the tools - graph manipulation tools in RVIZ to manipulate nodes and connections during mapping - Map serialization and lossless data storage - ... more but those are the highlights

For running on live production robots, I recommend using the snap: slam-toolbox, it has optimizations in it that make it about 10x faster. You need the deb/source install for the other developer level tools that don't need to be on the robot (rviz plugins, etc).

This package has been benchmarked mapping building at 5x+ realtime up to about 30,000 sqft and 3x realtime up to about 60,000 sqft. with the largest area (I'm aware of) used was a 200,000 sq.ft. building in synchronous mode (e.i. processing all scans, regardless of lag), and much larger spaces in asynchronous mode.

The video below was collected at Circuit Launch in Oakland, California. Thanks to Silicon Valley Robotics & Circuit Launch for being a testbed for some of this work. This data is currently available upon request, but its going to be included in a larger open-source dataset down the line.

map_image

LifeLong Mapping

LifeLong mapping is the concept of being able to map a space, completely or partially, and over time, refine and update that map as you continue to interact with the space. Our approach implements this and also takes care to allow for the application of operating in the cloud, as well as mapping with many robots in a shared space (cloud distributed mapping). While Slam Toolbox can also just be used for a point-and-shoot mapping of a space and saving that map as a .pgm file as maps are traditionally stored in, it also allows you to save the pose-graph and metadata losslessly to reload later with the same or different robot and continue to map the space.

Our lifelong mapping consists of a few key steps - Serialization and Deserialization to store and reload map information - KD-Tree search matching to locate the robot in its position on reinitalization - pose-graph optimizition based SLAM with 2D scan matching abstraction

This will allow the user to create and update existing maps, then serialize the data for use in other mapping sessions, something sorely lacking from most SLAM implementations and nearly all planar SLAM implementations. Other good libraries that do this include RTab-Map and Cartoprapher, though they themselves have their own quirks that make them (in my opinion) unusable for production robotics applications. This library provides the mechanics to save not only the data, but the pose graph, and associated metadata to work with. This has been used to create maps by merging techniques (taking 2 or more serialized objects and creating 1 globally consistent one) as well as continuous mapping techniques (updating 1, same, serialized map object over time and refining it). The major benefit of this over RTab-Map or Cartoprapher is the maturity of the underlying (but heavily modified) open_karto library the project is based on. The scan matcher of Karto is well known as an extremely good matcher for 2D laser scans and modified versions of Karto can be found in companies across the world.

Slam Toolbox supports all the major modes: - Starting from a predefined dock (assuming to be near start region) - Starting at any particular node - select a node ID to start near - Starting in any particular area - indicate current pose in the map frame to start at, like AMCL

In the RVIZ interface (see section below) you'll be able to re-localize in a map or continue mapping graphically or programatically using ROS services.

On time of writing: there a highly experimental implementation of what I call "true lifelong" mapping that does support the method for removing nodes over time as well as adding nodes, this results in a true ability to map for life since the computation is bounded by removing extraneous or outdated information. Its recommended to run the non-full LifeLong mapping mode in the cloud for the increased computational burdens if you'd like to be continuously refining a map. However a real and desperately needed application of this is to have multi-session mapping to update just a section of the map or map half an area at a time to create a full (and then static) map for AMCL or Slam Toolbox localization mode, which this will handle in spades. The immediate plan is to create a mode within LifeLong mapping to decay old nodes to bound the computation and allow it to run on the edge by refining the experimental node. Continuing mapping (lifelong) should be used to build a complete map then switch to the pose-graph deformation localization mode until node decay is implemented, and you should not see any substantial performance impacts.

Localization

Localization mode consists of 3 things: - Loads existing serialized map into the node - Maintains a rolling buffer of recent scans in the pose-graph - After expiring from the buffer scans are removed and the underlying map is not affected

Localization methods on image map files has been around for years and works relatively well. There has not been a great deal of work in academia to refine these algorithms to a degree that satesfies me. However SLAM is a rich and well benchmarked topic. The inspiration of this work was the concept of "Can we make localization, SLAM again?" such that we can take advantage of all the nice things about SLAM for localization, but remove the unbounded computational increase.

To enable, set mode: localization in the configuration file to allow for the Ceres plugin to set itself correctly to be able to quickly add and remove nodes and constraints from the pose graph, but isn't strictly required, but a performance optimization. The localization mode will automatically load your pose graph, take the first scan and match it against the local area to further refine your estimated position, and start localizing.

To minimize the amount of changes required for moving to this mode over AMCL, we also expose a subscriber to the /initial_pose topic used by AMCL to relocalize to a position, which also hooks up to the 2D Pose Estimation tool in RVIZ. This way you can enter localization mode with our approach but continue to use the same API as you expect from AMCL for ease of integration.

In summary, this approach I dub elastic pose-graph localization is where we take existing map pose-graphs and localized with-in them with a rolling window of recent scans. This way we can localize in an existing map using the scan matcher, but not update the underlaying map long-term should something go wrong. It can be considered a replacement to AMCL and results is not needing any .pgm maps ever again. The lifelong mapping/continuous slam mode above will do better if you'd like to modify the underlying graph while moving.

Tools

Plugin based Optimizers

I have created a pluginlib interface for the ScanSolver abstract class so that you can change optimizers on runtime to test many different ones if you like.

Then I generated plugins for a few different solvers that people might be interested in. I like to swap them out for benchmarking and make sure its the same code running for all. I have supported Ceres, G2O, SPA, and GTSAM.

GTSAM/G2O/SPA is currently "unsupported" although all the code is there. They don't outperform Ceres settings I describe below so I stopped compiling them to save on build time, but they're there and work if you would like to use them. PRs to implement other optimizer plugins are welcome.

Map Merging - Example uses of serialized raw data & posegraphs

Kinematic

This uses RVIZ and the plugin to load any number of posegraphs that will show up in RVIZ under map_N and a set of interactive markers to allow you to move them around. Once you have them all positioned relative to each other in the way you like, you can merge the submaps into a global map which can be downloaded with your map server implementation of choice.

It's more of a demonstration of other things you can do once you have the raw data to work with, but I don't suspect many people will get much use out of it unless you're used to stitching maps by hand.

More information in the RVIZ Plugin section below.

Pose Graph Merging

This is under development.

This is to solve the problem of merging many maps together with an initial guess of location in an elastic sense. This is something you just can't get if you don't have the full pose-graph and raw data to work with -- which we have from our continuous mapping work.

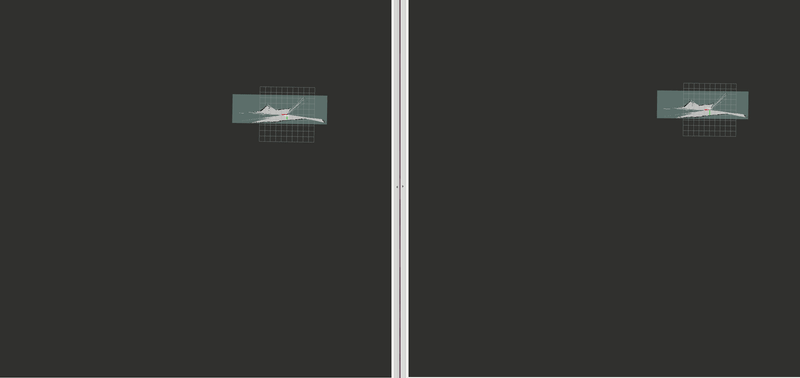

Hint: This is also really good for multi-robot map updating as well :)

RVIZ Plugin

An rviz plugin is furnished to help with manual loop closures and online / offline mapping. By default interactive mode is off (allowing you to move nodes) as this takes quite a toll on rviz. When you want to move nodes, tick the interactive box, move what you want, and save changes to prompt a manual loop closure. Clear if you made a mistake. When done, exit interactive mode again.

There's also a tool to help you control online and offline data. You can at any time stop processing new scans or accepting new scans into the queue. This is desirable when you want to allow the package to catch up while the robot sits still (This option is only meaningful in synchronous mode. In asynchronous mode the robot will never fall behind.) or you want to stop processing new scans while you do a manual loop closure / manual "help". If there's more in the queue than you want, you may also clear it.

Additionally there's exposed buttons for the serialization and deserialization services to load an old pose-graph to update and refine, or continue mapping, then save back to file. The "Start By Dock" checkbox will try to scan match against the first node (assuming you started at your dock) to give you an odometry estimate to start with. Another option is to start using an inputted position in the GUI or by calling the underlying service. Additionally, you can use the current odometric position estimation if you happened to have just paused the robot or not moved much between runs. Finally (and most usefully), you can use the RVIZ tool for 2D Pose Estimation to tell it where to go in localization mode just like AMCL.

Additionally the RVIZ plugin will allow you to add serialized map files as submaps in RVIZ. They will be displayed with an interactive marker you can translate and rotate to match up, then generate a composite map with the Generate Map button. At that point the composite map is being broadcasted on the /map topic and you can save it with the map_saver.

It's recommended to always continue mapping near the dock, if that's not possible, look into the starting from pose or map merging techniques. This RVIZ plugin is mostly here as a debug utility, but if you often find yourself mapping areas using rviz already, I'd just have it open. All the RVIZ buttons are implemented using services that a master application can control.

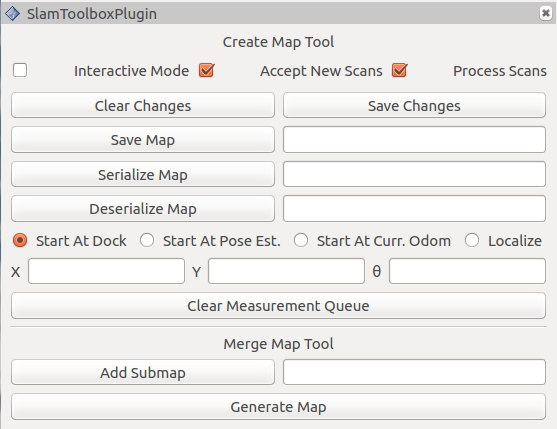

The interface is shown below.

rviz_plugin

Graph Manipulation

By enabling Interactive Mode, the graph nodes will change from markers to interactive markers which you can manipulate. When you move a node(s), you can Save Changes and it will send the updated position to the pose-graph and cause an optimization run to occur to change the pose-graph with your new node location. This is helpful if the robot gets pushed, slips, runs into a wall, or otherwise has drifting odometry and you would like to manually correct it.

When a map is sufficiently large, the number of interactive markers in RVIZ may be too large and RVIZ may start to lag. I only recommend using this feature as a testing debug tool and not for production. However if you are able to make it work with 10,000 interactive markers, I'll merge that PR in a heartbeat. Otherwise I'd restrict the use of this feature to small maps or with limited time to make a quick change and return to static mode by unchecking the box.

Metrics

If you're a weirdo like me and you want to see how I came up with the settings I had for the Ceres optimizer, see below.

ceres_solver_comparison

The data sets present solve time vs number of nodes in the pose graph on a large dataset, as that is not open source, but suffice to say that the settings I recommend work well. I think anyone would be hardset in a normal application to exceed or find that another solver type is better (that super low curve on the bottom one, yeah, that's it). Benchmark on a low power 7th gen i7 machine.

It can map very large spaces with reasonable CPU and memory consumption. My default settings increase O(N) on number of elements in the pose graph. I recommend from extensive testing to use the SPARSE_NORMAL_CHOLESKY solver with Ceres and the SCHUR_JACOBI preconditioner. Using LM at the trust region strategy is comparable to the dogleg subspace strategy, but LM is much better supported so why argue with it.

You can get away without a loss function if your odometry is good (ie likelihood for outliers is extremely low). If you have an abnormal application or expect wheel slippage, I might recommend a HuberLoss function, which is a really good catch-all loss function if you're looking for a place to start. All these options and more are available from the ROS parameter server.

API

The following are the services/topics that are exposed for use. See the rviz plugin for an implementation of their use.

Subscribed topics

/scan sensor_msgs/LaserScan the input scan from your laser to utilize
tf N/A a valid transform from your configured odom_frame to base_frame

Published topics

map nav_msgs/OccupancyGrid occupancy grid representation of the pose-graph at map_update_interval frequency

Exposed Services

Topic Type Description
/slam_toolbox/clear_changes slam_toolbox/Clear Clear all manual pose-graph manipulation changes pending
/slam_toolbox/deserialize_map slam_toolbox/DeserializePoseGraph Load a saved serialized pose-graph files from disk
/slam_toolbox/dynamic_map nav_msgs/OccupancyGrid Request the current state of the pose-graph as an occupancy grid
/slam_toolbox/manual_loop_closure slam_toolbox/LoopClosure Request the manual changes to the pose-graph pending to be processed
/slam_toolbox/pause_new_measurements slam_toolbox/Pause Pause processing of new incoming laser scans by the toolbox
/slam_toolbox/save_map slam_toolbox/SaveMap Save the map image file of the pose-graph that is useable for display or AMCL localization. It is a simple wrapper on map_server/map_saver but is useful.
/slam_toolbox/serialize_map slam_toolbox/SerializePoseGraph Save the map pose-graph and datathat is useable for continued mapping, slam_toolbox localization, offline manipulation, and more
/slam_toolbox/toggle_interactive_mode slam_toolbox/ToggleInteractive Toggling in and out of interactive mode, publishing interactive markers of the nodes and their positions to be updated in an application

Configuration

The following settings and options are exposed to you. My default configuration is given in config directory.

Solver Params

solver_plugin - The type of nonlinear solver to utilize for karto's scan solver. Options: solver_plugins::CeresSolver, solver_plugins::SpaSolver, solver_plugins::G2oSolver. Default: solver_plugins::CeresSolver.

ceres_linear_solver - The linear solver for Ceres to use. Options: SPARSE_NORMAL_CHOLESKY, SPARSE_SCHUR, ITERATIVE_SCHUR, CGNR. Defaults to SPARSE_NORMAL_CHOLESKY.

ceres_preconditioner - The preconditioner to use with that solver. Options: JACOBI, IDENTITY (none), SCHUR_JACOBI. Defaults to JACOBI.

ceres_trust_strategy - The trust region strategy. Line searach strategies are not exposed because they perform poorly for this use. Options: LEVENBERG_MARQUARDT, DOGLEG. Default: LEVENBERG_MARQUARDT.

ceres_dogleg_type - The dogleg strategy to use if the trust strategy is DOGLEG. Options: TRADITIONAL_DOGLEG, SUBSPACE_DOGLEG. Default: TRADITIONAL_DOGLEG

ceres_loss_function - The type of loss function to reject outlier measurements. None is equatable to a squared loss. Options: None, HuberLoss, CauchyLoss. Default: None.

mode - "mapping" or "localization" mode for performance optimizations in the Ceres problem creation

Toolbox Params

odom_frame - Odometry frame

map_frame - Map frame

base_frame - Base frame

scan_topic - scan topic, absolute path, ei /scan not scan

map_file_name - Name of the pose-graph file to load on startup if available

map_start_pose - Pose to start pose-graph mapping/localization in, if available

map_start_at_dock - Starting pose-graph loading at the dock (first node), if available. If both pose and dock are set, it will use pose

debug_logging - Change logger to debug

throttle_scans - Number of scans to throttle in synchronous mode

transform_publish_period - The map to odom transform publish period. 0 will not publish transforms

map_update_interval - Interval to update the 2D occupancy map for other applications / visualization

enable_interactive_mode - Whether or not to allow for interactive mode to be enabled. Interactive mode will retain a cache of laser scans mapped to their ID for visualization in interactive mode. As a result the memory for the process will increase. This is manually disabled in localization and lifelong modes since they would increase the memory utilization over time. Valid for either mapping or continued mapping modes.

resolution - Resolution of the 2D occupancy map to generate

max_laser_range - Maximum laser range to use for 2D occupancy map rastering

minimum_time_interval - The minimum duration of time between scans to be processed in synchronous mode

transform_timeout - TF timeout for looking up transforms

tf_buffer_duration - Duration to store TF messages for lookup. Set high if running offline at multiple times speed in synchronous mode.

stack_size_to_use - The number of bytes to reset the stack size to, to enable serialization/deserialization of files. A liberal default is 40000000, but less is fine.

minimum_travel_distance - Minimum distance of travel before processing a new scan

Matcher Params

use_scan_matching - whether to use scan matching to refine odometric pose (uh, why would you not?)

use_scan_barycenter - Whether to use the barycenter or scan pose

minimum_travel_heading - Minimum changing in heading to justify an update

scan_buffer_size - The number of scans to buffer into a chain, also used as the number of scans in the circular buffer of localization mode

scan_buffer_maximum_scan_distance - Maximum distance of a scan from the pose before removing the scan from the buffer

link_match_minimum_response_fine - The threshold link matching algorithm response for fine resolution to pass

link_scan_maximum_distance - Maximum distance between linked scans to be valid

loop_search_maximum_distance - Maximum threshold of distance for scans to be considered for loop closure

do_loop_closing - Whether to do loop closure (if you're not sure, the answer is "true")

loop_match_minimum_chain_size - The minimum chain length of scans to look for loop closure

loop_match_maximum_variance_coarse - The threshold variance in coarse search to pass to refine

loop_match_minimum_response_coarse - The threshold response of the loop closure algorithm in coarse search to pass to refine

loop_match_minimum_response_fine - The threshold response of the loop closure algorithm in fine search to pass to refine

correlation_search_space_dimension - Search grid size to do scan correlation over

correlation_search_space_resolution - Search grid resolution to do scan correlation over

correlation_search_space_smear_deviation - Amount of multimodal smearing to smooth out responses

loop_search_space_dimension - Size of the search grid over the loop closure algorith

loop_search_space_resolution - Search grid resolution to do loop closure over

loop_search_space_smear_deviation - Amount of multimodal smearing to smooth out responses

distance_variance_penalty - A penalty to apply to a matched scan as it differs from the odometric pose

angle_variance_penalty - A penalty to apply to a matched scan as it differs from the odometric pose

fine_search_angle_offset - Range of angles to test for fine scan matching

coarse_search_angle_offset - Range of angles to test for coarse scan matching

coarse_angle_resolution - Resolution of angles over the Offset range to test in scan matching

minimum_angle_penalty - Smallest penalty an angle can have to ensure the size doesn't blow up

minimum_distance_penalty - Smallest penalty a scan can have to ensure the size doesn't blow up

use_response_expansion - Whether to automatically increase the search grid size if no viable match is found

Install

ROSDep will take care of the major things

rosdep install -q -y -r --from-paths src --ignore-src

Or install via apt

apt install ros-dashing-slam-toolbox

Run your colcon build procedure of choice.

You can run via ros2 launch slam_toolbox online_sync_launch.py

Etc

NanoFlann!

In order to do some operations quickly for continued mapping and localization, I make liberal use of NanoFlann (shout out!).

Brief incursion into snaps

Snap are completely isolated containerized packages that one can run through the Canonical organization on a large number of Linux distributions. They're similar to Docker containers but it doesn't share the kernel or any of the libraries, and rather has everything internal as essentially a seperate partitioned operating system based on Ubuntu Core.

We package up slam toolbox in this way for a nice multiple-on speed up in execution from a couple of pretty nuanced reasons in this particular project, but generally speaking you shouldn't expect a speedup from a snap.

Since Snaps are totally isolated and there's no override flags like in Docker, there's only a couple of fixed directories that both the snap and the host system can write and read from, including SNAP_COMMON (usually in /var/snap/[snap name]/common). Therefore, this is the place that if you're serializing and deserializing maps, you need to have them accessible to that directory.

You can optionally store all your serialized maps there, move maps there as needed, take maps from there after serialization, or do my favorite option and link the directories with ln to where ever you normally store your maps and you're wanting to dump your serialized map files.

Example of ln:

#           Source                           Linked
sudo ln -s /home/steve/maps/serialized_map/ /var/snap/slam-toolbox/common

and then all you have to do when you specify a map to use is set the filename to slam-toolbox/map_name and it should work no matter if you're running in a snap, docker, or on bare metal. The -s makes a symbol link so rather than /var/snap/slam-toolbox/common/* containing the maps, /var/snap/slam-toolbox/common/serialized_map/* will. By default on bare metal, the maps will be saved in .ros

More Gifs!

map_image

If someone from iRobot can use this to tell me my Roomba serial number by correlating to its maps, I'll buy them lunch and probably try to hire them.

Repository Summary

Checkout URI https://github.com/SteveMacenski/slam_toolbox.git
VCS Type git
VCS Version melodic-devel
Last Updated 2019-10-17
Dev Status DEVELOPED
Released RELEASED

Packages

Name Version
slam_toolbox 1.1.1

README

Slam Toolbox

DockerHub Build Status
Build Farm Build Status

Introduction

Slam Toolbox is a set of tools and capabilities for 2D SLAM built by Steve Macenski while at Simbe Robotics and in his free time.

This project contains the ability to do most everything any other available SLAM library, both free and paid, and more. This includes: - Ordinary point-and-shoot 2D SLAM mobile robotics folks expect (start, map, save pgm file) with some nice built in utilities like saving maps - Continuing to refine, remap, or continue mapping a saved (serialized) pose-graph at any time - life-long mapping: load a saved pose-graph continue mapping in a space while also removing extraneous information from newly added scans - an optimization-based localization mode built on the pose-graph. Optionally run localization mode without a prior map for "lidar odometry" mode with local loop closures - synchronous and asynchronous modes of mapping - kinematic map merging (with an elastic graph manipulation merging technique in the works) - plugin-based optimization solvers with a new optimized Google Ceres based plugin - RVIZ plugin for interacting with the tools - graph manipulation tools in RVIZ to manipulate nodes and connections during mapping - Map serialization and lossless data storage - ... more but those are the highlights

For running on live production robots, I recommend using the snap or from the build farm: slam-toolbox, it has optimizations in it that make it about 10x faster. You need the deb/source install for the other developer level tools that don't need to be on the robot (rviz plugins, etc).

This package has been benchmarked mapping building at 5x+ realtime up to about 30,000 sqft and 3x realtime up to about 60,000 sqft. with the largest area (I'm aware of) used was a 200,000 sq.ft. building in synchronous mode (e.i. processing all scans, regardless of lag), and much larger spaces in asynchronous mode.

The video below was collected at Circuit Launch in Oakland, California. Thanks to Silicon Valley Robotics & Circuit Launch for being a testbed for some of this work. This data is currently available upon request, but its going to be included in a larger open-source dataset down the line.

map_image

LifeLong Mapping

LifeLong mapping is the concept of being able to map a space, completely or partially, and over time, refine and update that map as you continue to interact with the space. Our approach implements this and also takes care to allow for the application of operating in the cloud, as well as mapping with many robots in a shared space (cloud distributed mapping). While Slam Toolbox can also just be used for a point-and-shoot mapping of a space and saving that map as a .pgm file as maps are traditionally stored in, it also allows you to save the pose-graph and metadata losslessly to reload later with the same or different robot and continue to map the space.

Our lifelong mapping consists of a few key steps - Serialization and Deserialization to store and reload map information - KD-Tree search matching to locate the robot in its position on reinitalization - pose-graph optimizition based SLAM with 2D scan matching abstraction

This will allow the user to create and update existing maps, then serialize the data for use in other mapping sessions, something sorely lacking from most SLAM implementations and nearly all planar SLAM implementations. Other good libraries that do this include RTab-Map and Cartoprapher, though they themselves have their own quirks that make them (in my opinion) unusable for production robotics applications. This library provides the mechanics to save not only the data, but the pose graph, and associated metadata to work with. This has been used to create maps by merging techniques (taking 2 or more serialized objects and creating 1 globally consistent one) as well as continuous mapping techniques (updating 1, same, serialized map object over time and refining it). The major benefit of this over RTab-Map or Cartoprapher is the maturity of the underlying (but heavily modified) open_karto library the project is based on. The scan matcher of Karto is well known as an extremely good matcher for 2D laser scans and modified versions of Karto can be found in companies across the world.

Slam Toolbox supports all the major modes: - Starting from a predefined dock (assuming to be near start region) - Starting at any particular node - select a node ID to start near - Starting in any particular area - indicate current pose in the map frame to start at, like AMCL

In the RVIZ interface (see section below) you'll be able to re-localize in a map or continue mapping graphically or programatically using ROS services.

On time of writing: there a highly experimental implementation of what I call "true lifelong" mapping that does support the method for removing nodes over time as well as adding nodes, this results in a true ability to map for life since the computation is bounded by removing extraneous or outdated information. Its recommended to run the non-full LifeLong mapping mode in the cloud for the increased computational burdens if you'd like to be continuously refining a map. However a real and desperately needed application of this is to have multi-session mapping to update just a section of the map or map half an area at a time to create a full (and then static) map for AMCL or Slam Toolbox localization mode, which this will handle in spades. The immediate plan is to create a mode within LifeLong mapping to decay old nodes to bound the computation and allow it to run on the edge by refining the experimental node. Continuing mapping (lifelong) should be used to build a complete map then switch to the pose-graph deformation localization mode until node decay is implemented, and you should not see any substantial performance impacts.

Localization

Localization mode consists of 3 things: - Loads existing serialized map into the node - Maintains a rolling buffer of recent scans in the pose-graph - After expiring from the buffer scans are removed and the underlying map is not affected

Localization methods on image map files has been around for years and works relatively well. There has not been a great deal of work in academia to refine these algorithms to a degree that satesfies me. However SLAM is a rich and well benchmarked topic. The inspiration of this work was the concept of "Can we make localization, SLAM again?" such that we can take advantage of all the nice things about SLAM for localization, but remove the unbounded computational increase.

To enable, set mode: localization in the configuration file to allow for the Ceres plugin to set itself correctly to be able to quickly add and remove nodes and constraints from the pose graph, but isn't strictly required, but a performance optimization. The localization mode will automatically load your pose graph, take the first scan and match it against the local area to further refine your estimated position, and start localizing.

To minimize the amount of changes required for moving to this mode over AMCL, we also expose a subscriber to the /initial_pose topic used by AMCL to relocalize to a position, which also hooks up to the 2D Pose Estimation tool in RVIZ. This way you can enter localization mode with our approach but continue to use the same API as you expect from AMCL for ease of integration.

In summary, this approach I dub elastic pose-graph localization is where we take existing map pose-graphs and localized with-in them with a rolling window of recent scans. This way we can localize in an existing map using the scan matcher, but not update the underlaying map long-term should something go wrong. It can be considered a replacement to AMCL and results is not needing any .pgm maps ever again. The lifelong mapping/continuous slam mode above will do better if you'd like to modify the underlying graph while moving.

Tools

Plugin based Optimizers

I have created a pluginlib interface for the ScanSolver abstract class so that you can change optimizers on runtime to test many different ones if you like.

Then I generated plugins for a few different solvers that people might be interested in. I like to swap them out for benchmarking and make sure its the same code running for all. I have supported Ceres, G2O, SPA, and GTSAM.

GTSAM/G2O/SPA is currently "unsupported" although all the code is there. They don't outperform Ceres settings I describe below so I stopped compiling them to save on build time, but they're there and work if you would like to use them. PRs to implement other optimizer plugins are welcome.

Map Merging - Example uses of serialized raw data & posegraphs

Kinematic

This uses RVIZ and the plugin to load any number of posegraphs that will show up in RVIZ under map_N and a set of interactive markers to allow you to move them around. Once you have them all positioned relative to each other in the way you like, you can merge the submaps into a global map which can be downloaded with your map server implementation of choice.

It's more of a demonstration of other things you can do once you have the raw data to work with, but I don't suspect many people will get much use out of it unless you're used to stitching maps by hand.

More information in the RVIZ Plugin section below.

Pose Graph Merging

This is under development.

This is to solve the problem of merging many maps together with an initial guess of location in an elastic sense. This is something you just can't get if you don't have the full pose-graph and raw data to work with -- which we have from our continuous mapping work.

Hint: This is also really good for multi-robot map updating as well :)

RVIZ Plugin

An rviz plugin is furnished to help with manual loop closures and online / offline mapping. By default interactive mode is off (allowing you to move nodes) as this takes quite a toll on rviz. When you want to move nodes, tick the interactive box, move what you want, and save changes to prompt a manual loop closure. Clear if you made a mistake. When done, exit interactive mode again.

There's also a tool to help you control online and offline data. You can at any time stop processing new scans or accepting new scans into the queue. This is desirable when you want to allow the package to catch up while the robot sits still (This option is only meaningful in synchronous mode. In asynchronous mode the robot will never fall behind.) or you want to stop processing new scans while you do a manual loop closure / manual "help". If there's more in the queue than you want, you may also clear it.

Additionally there's exposed buttons for the serialization and deserialization services to load an old pose-graph to update and refine, or continue mapping, then save back to file. The "Start By Dock" checkbox will try to scan match against the first node (assuming you started at your dock) to give you an odometry estimate to start with. Another option is to start using an inputted position in the GUI or by calling the underlying service. Additionally, you can use the current odometric position estimation if you happened to have just paused the robot or not moved much between runs. Finally (and most usefully), you can use the RVIZ tool for 2D Pose Estimation to tell it where to go in localization mode just like AMCL.

Additionally the RVIZ plugin will allow you to add serialized map files as submaps in RVIZ. They will be displayed with an interactive marker you can translate and rotate to match up, then generate a composite map with the Generate Map button. At that point the composite map is being broadcasted on the /map topic and you can save it with the map_saver.

It's recommended to always continue mapping near the dock, if that's not possible, look into the starting from pose or map merging techniques. This RVIZ plugin is mostly here as a debug utility, but if you often find yourself mapping areas using rviz already, I'd just have it open. All the RVIZ buttons are implemented using services that a master application can control.

The interface is shown below.

rviz_plugin

Graph Manipulation

By enabling Interactive Mode, the graph nodes will change from markers to interactive markers which you can manipulate. When you move a node(s), you can Save Changes and it will send the updated position to the pose-graph and cause an optimization run to occur to change the pose-graph with your new node location. This is helpful if the robot gets pushed, slips, runs into a wall, or otherwise has drifting odometry and you would like to manually correct it.

When a map is sufficiently large, the number of interactive markers in RVIZ may be too large and RVIZ may start to lag. I only recommend using this feature as a testing debug tool and not for production. However if you are able to make it work with 10,000 interactive markers, I'll merge that PR in a heartbeat. Otherwise I'd restrict the use of this feature to small maps or with limited time to make a quick change and return to static mode by unchecking the box.

Metrics

If you're a weirdo like me and you want to see how I came up with the settings I had for the Ceres optimizer, see below.

ceres_solver_comparison

The data sets present solve time vs number of nodes in the pose graph on a large dataset, as that is not open source, but suffice to say that the settings I recommend work well. I think anyone would be hardset in a normal application to exceed or find that another solver type is better (that super low curve on the bottom one, yeah, that's it). Benchmark on a low power 7th gen i7 machine.

It can map very large spaces with reasonable CPU and memory consumption. My default settings increase O(N) on number of elements in the pose graph. I recommend from extensive testing to use the SPARSE_NORMAL_CHOLESKY solver with Ceres and the SCHUR_JACOBI preconditioner. Using LM at the trust region strategy is comparable to the dogleg subspace strategy, but LM is much better supported so why argue with it.

You can get away without a loss function if your odometry is good (ie likelihood for outliers is extremely low). If you have an abnormal application or expect wheel slippage, I might recommend a HuberLoss function, which is a really good catch-all loss function if you're looking for a place to start. All these options and more are available from the ROS parameter server.

API

The following are the services/topics that are exposed for use. See the rviz plugin for an implementation of their use.

Subscribed topics

scan sensor_msgs/LaserScan the input scan from your laser to utilize
tf N/A a valid transform from your configured odom_frame to base_frame

Published topics

map nav_msgs/OccupancyGrid occupancy grid representation of the pose-graph at map_update_interval frequency

Exposed Services

Topic Type Description
/slam_toolbox/clear_changes slam_toolbox/Clear Clear all manual pose-graph manipulation changes pending
/slam_toolbox/deserialize_map slam_toolbox/DeserializePoseGraph Load a saved serialized pose-graph files from disk
/slam_toolbox/dynamic_map nav_msgs/OccupancyGrid Request the current state of the pose-graph as an occupancy grid
/slam_toolbox/manual_loop_closure slam_toolbox/LoopClosure Request the manual changes to the pose-graph pending to be processed
/slam_toolbox/pause_new_measurements slam_toolbox/Pause Pause processing of new incoming laser scans by the toolbox
/slam_toolbox/save_map slam_toolbox/SaveMap Save the map image file of the pose-graph that is useable for display or AMCL localization. It is a simple wrapper on map_server/map_saver but is useful.
/slam_toolbox/serialize_map slam_toolbox/SerializePoseGraph Save the map pose-graph and datathat is useable for continued mapping, slam_toolbox localization, offline manipulation, and more
/slam_toolbox/toggle_interactive_mode slam_toolbox/ToggleInteractive Toggling in and out of interactive mode, publishing interactive markers of the nodes and their positions to be updated in an application

Configuration

The following settings and options are exposed to you. My default configuration is given in config directory.

Solver Params

solver_plugin - The type of nonlinear solver to utilize for karto's scan solver. Options: solver_plugins::CeresSolver, solver_plugins::SpaSolver, solver_plugins::G2oSolver. Default: solver_plugins::CeresSolver.

ceres_linear_solver - The linear solver for Ceres to use. Options: SPARSE_NORMAL_CHOLESKY, SPARSE_SCHUR, ITERATIVE_SCHUR, CGNR. Defaults to SPARSE_NORMAL_CHOLESKY.

ceres_preconditioner - The preconditioner to use with that solver. Options: JACOBI, IDENTITY (none), SCHUR_JACOBI. Defaults to JACOBI.

ceres_trust_strategy - The trust region strategy. Line searach strategies are not exposed because they perform poorly for this use. Options: LEVENBERG_MARQUARDT, DOGLEG. Default: LEVENBERG_MARQUARDT.

ceres_dogleg_type - The dogleg strategy to use if the trust strategy is DOGLEG. Options: TRADITIONAL_DOGLEG, SUBSPACE_DOGLEG. Default: TRADITIONAL_DOGLEG

ceres_loss_function - The type of loss function to reject outlier measurements. None is equatable to a squared loss. Options: None, HuberLoss, CauchyLoss. Default: None.

mode - "mapping" or "localization" mode for performance optimizations in the Ceres problem creation

Toolbox Params

odom_frame - Odometry frame

map_frame - Map frame

base_frame - Base frame

map_file_name - Name of the pose-graph file to load on startup if available

map_start_pose - Pose to start pose-graph mapping/localization in, if available

map_start_at_dock - Starting pose-graph loading at the dock (first node), if available. If both pose and dock are set, it will use pose

debug_logging - Change logger to debug

throttle_scans - Number of scans to throttle in synchronous mode

transform_publish_period - The map to odom transform publish period. 0 will not publish transforms

map_update_interval - Interval to update the 2D occupancy map for other applications / visualization

enable_interactive_mode - Whether or not to allow for interactive mode to be enabled. Interactive mode will retain a cache of laser scans mapped to their ID for visualization in interactive mode. As a result the memory for the process will increase. This is manually disabled in localization and lifelong modes since they would increase the memory utilization over time. Valid for either mapping or continued mapping modes.

resolution - Resolution of the 2D occupancy map to generate

max_laser_range - Maximum laser range to use for 2D occupancy map rastering

minimum_time_interval - The minimum duration of time between scans to be processed in synchronous mode

transform_timeout - TF timeout for looking up transforms

tf_buffer_duration - Duration to store TF messages for lookup. Set high if running offline at multiple times speed in synchronous mode.

stack_size_to_use - The number of bytes to reset the stack size to, to enable serialization/deserialization of files. A liberal default is 40000000, but less is fine.

minimum_travel_distance - Minimum distance of travel before processing a new scan

Matcher Params

use_scan_matching - whether to use scan matching to refine odometric pose (uh, why would you not?)

use_scan_barycenter - Whether to use the barycenter or scan pose

minimum_travel_heading - Minimum changing in heading to justify an update

scan_buffer_size - The number of scans to buffer into a chain, also used as the number of scans in the circular buffer of localization mode

scan_buffer_maximum_scan_distance - Maximum distance of a scan from the pose before removing the scan from the buffer

link_match_minimum_response_fine - The threshold link matching algorithm response for fine resolution to pass

link_scan_maximum_distance - Maximum distance between linked scans to be valid

loop_search_maximum_distance - Maximum threshold of distance for scans to be considered for loop closure

do_loop_closing - Whether to do loop closure (if you're not sure, the answer is "true")

loop_match_minimum_chain_size - The minimum chain length of scans to look for loop closure

loop_match_maximum_variance_coarse - The threshold variance in coarse search to pass to refine

loop_match_minimum_response_coarse - The threshold response of the loop closure algorithm in coarse search to pass to refine

loop_match_minimum_response_fine - The threshold response of the loop closure algorithm in fine search to pass to refine

correlation_search_space_dimension - Search grid size to do scan correlation over

correlation_search_space_resolution - Search grid resolution to do scan correlation over

correlation_search_space_smear_deviation - Amount of multimodal smearing to smooth out responses

loop_search_space_dimension - Size of the search grid over the loop closure algorith

loop_search_space_resolution - Search grid resolution to do loop closure over

loop_search_space_smear_deviation - Amount of multimodal smearing to smooth out responses

distance_variance_penalty - A penalty to apply to a matched scan as it differs from the odometric pose

angle_variance_penalty - A penalty to apply to a matched scan as it differs from the odometric pose

fine_search_angle_offset - Range of angles to test for fine scan matching

coarse_search_angle_offset - Range of angles to test for coarse scan matching

coarse_angle_resolution - Resolution of angles over the Offset range to test in scan matching

minimum_angle_penalty - Smallest penalty an angle can have to ensure the size doesn't blow up

minimum_distance_penalty - Smallest penalty a scan can have to ensure the size doesn't blow up

use_response_expansion - Whether to automatically increase the search grid size if no viable match is found

Install

ROSDep will take care of the major things

rosdep install -q -y -r --from-paths src --ignore-src

Also released in Melodic / Dashing to the ROS build farm to install debians.

Run your catkin build procedure of choice.

You can run via roslaunch slam_toolbox online_sync.launch

Etc

NanoFlann!

In order to do some operations quickly for continued mapping and localization, I make liberal use of NanoFlann (shout out!).

Brief incursion into snaps

Snap are completely isolated containerized packages that one can run through the Canonical organization on a large number of Linux distributions. They're similar to Docker containers but it doesn't share the kernel or any of the libraries, and rather has everything internal as essentially a seperate partitioned operating system based on Ubuntu Core.

We package up slam toolbox in this way for a nice multiple-on speed up in execution from a couple of pretty nuanced reasons in this particular project, but generally speaking you shouldn't expect a speedup from a snap. There's a generate snap script in the snap directory to create a snap.

Since Snaps are totally isolated and there's no override flags like in Docker, there's only a couple of fixed directories that both the snap and the host system can write and read from, including SNAP_COMMON (usually in /var/snap/[snap name]/common). Therefore, this is the place that if you're serializing and deserializing maps, you need to have them accessible to that directory.

You can optionally store all your serialized maps there, move maps there as needed, take maps from there after serialization, or do my favorite option and link the directories with ln to where ever you normally store your maps and you're wanting to dump your serialized map files.

Example of ln:

#           Source                           Linked
sudo ln -s /home/steve/maps/serialized_map/ /var/snap/slam-toolbox/common

and then all you have to do when you specify a map to use is set the filename to slam-toolbox/map_name and it should work no matter if you're running in a snap, docker, or on bare metal. The -s makes a symbol link so rather than /var/snap/slam-toolbox/common/* containing the maps, /var/snap/slam-toolbox/common/serialized_map/* will. By default on bare metal, the maps will be saved in .ros

More Gifs!

map_image

If someone from iRobot can use this to tell me my Roomba serial number by correlating to its maps, I'll buy them lunch and probably try to hire them.

Repository Summary

Checkout URI https://github.com/SteveMacenski/slam_toolbox.git
VCS Type git
VCS Version kinetic-devel
Last Updated 2019-10-11
Dev Status DEVELOPED
Released UNRELEASED

Packages

Name Version
slam_toolbox 0.3.3

README

Slam Toolbox

Get it from the Snap Store

Introduction

Slam Toolbox is a set of tools and capabilities for 2D planar SLAM built by Steve Macenski while at Simbe Robotics and in my free time.

This project contains the ability to do most everything any other available SLAM library, both free and paid, and more. This includes: - Ordinary point-and-shoot 2D SLAM mobile robotics folks expect (start, map, save pgm file) - life-long mapping (start, serialize, wait any time, restart anywhere, continue refining) - an optimization-based localization mode (start, serialize, restart anywhere in Localization mode, optimization based localizer) - synchronous and asynchronous modes - kinematic map merging (with an elastic graph manipulation merging technique in the works) - plugin-based optimization solvers with a new optimized Google Ceres based plugin - RVIZ plugin for interacting with the tools - graph manipulation tools in RVIZ to manipulate nodes and connections during mapping - Map serialization and lossless data storage - ... more but those are the highlights

For running on live production robots, I recommend using the snap: slam-toolbox, it has optimizations in it that make it about 10x faster. You need the deb/source install for the other developer level tools that don't need to be on the robot (rviz plugins, etc).

This package has been benchmarked mapping building at 5x+ realtime up to about 30,000 sqft and 3x realtime up to about 60,000 sqft. with the largest area (I'm aware of) used was a 145,000 sq.ft. building in sychronous mode (e.i. processing all scans, regardless of lag), and much larger spaces in asynchronous mode.

map_image

LifeLong Mapping

LifeLong mapping is the concept of being able to map a space, completely or partially, and over time, refine and update that map as you continue to interact with the space. Our approach implements this and also takes care to allow for the application of operating in the cloud, as well as mapping with many robots in a shared space (cloud distributed mapping). While Slam Toolbox can also just be used for a point-and-shoot mapping of a space and saving that map as a .pgm file as maps are traditionally stored in, it also allows you to save the pose-graph and metadata losslessly to reload later with the same or different robot and continue to map the space.

Our lifelong mapping consists of a few key steps - Serialization and Deserialization to store and reload map information - KD-Tree search matching to locate the robot in its position on reinitalization - pose-graph optimizition based SLAM with 2D scan matching (Karto) abstraction

This will allow the user to create and update existing maps, then serialize the data for use in other mapping sessions, something sorely lacking from most SLAM implementations and nearly all planar SLAM implementations. Other good libraries that do this include RTab-Map and Cartoprapher, though they themselves have their own quirks that make them (in my opinion) unusable for production robotics applications. This library provides the mechanics to save not only the data, but the pose graph, and associated metadata to work with. This has been used to create maps by merging techniques (taking 2 or more serialized objects and creating 1 globally consistent one) as well as continuous mapping techniques (updating 1, same, serialized map object over time and refining it). The major benefit of this over RTab-Map or Cartoprapher is the maturity of the underlying (but heavily modified) open_karto library the project is based on. The scan matcher of Karto is well known as an extremely good matcher for 2D laser scans and modified versions of Karto can be found in companies across the world.

Slam Toolbox supports all the major modes: - Starting from a predefined dock (assuming to be near start region) - Starting from where you left off - Starting at any particular node - select a node ID to start near - Starting in any particular area - indicate current pose in the map frame to start at, like AMCL

In the RVIZ interface (see section below) you'll be able to re-localize in a map or continue mapping graphically or programatically using ROS services.

On time of writing: the LifeLong mapping implementation has no established method for removing nodes over time when not in localization mode. As a result its recommended to run LifeLong mapping mode in the cloud for the increased computational burdens. However a real and desperately needed application of this is to have multi-session mapping to update just a section of the map or map half an area at a time to create a full (and then static) map for AMCL or Slam Toolbox AMCL mode, which this will handle in spades. The immediate plan is to create a mode within LifeLong mapping to decay old nodes to bound the computation and allow it to run on the edge, but for now that is not recommended except for demonstrations or small spaces. To clarity- lifelong mapping works, but the number of nodes will grow unbounded if you never switch to localization mode. Continuing mapping should be used to build a complete map then switch to the pose-graph deformation localization mode until node decay is implemented, and you should not see any substantial performance impacts.

Localization

Localization mode consists of 3 things: - Loads existing serialized map into the node - Maintains a rolling buffer of recent scans in the pose-graph - After expiring from the buffer scans are removed and the underlying map is not affected

It is comparable to Cartographer's pure-localization mode. To enable, set mode: localization in the configuration file to allow for the Ceres plugin to set itself correctly to be able to quickly add and remove nodes and constraints from the pose graph. Also, on run, send the service request to Slam Toolbox to enter localization mode and the location to start at. The localization mode will automatically load you map, take the first scan and match it against the local area to further refine your estimated position, and start localizing.

To minimize the amount of changes required for moving to this mode over AMCL, we also expose a subscriber to the /initial_pose topic used by AMCL to relocalize to a position, which also hooks up to the 2D Pose Estimation tool in RVIZ. This way you can enter localization mode with our approach but continue to use the same API as you expect from AMCL for ease of integration.

In summary, this approach I dub elastic pose-graph localization is where we take existing map pose-graphs and localized with-in them with a rolling window of recent scans. This way we can localize in an existing map using the scan matcher, but not update the underlaying map long-term should something go wrong. It can be considered a replacement to AMCL and results is not needing any .pgm maps ever again. The lifelong mapping/continuous slam mode above will do better if you'd like to modify the underlying graph while moving.

Note: Be sure to not serialize the graph in localization mode, you will corrupt it!

Tools

Plugin based Optimizers

I have created a pluginlib interface for the ScanSolver abstract class so that you can change optimizers on runtime to test many different ones if you like.

Then I generated plugins for a few different solvers that people might be interested in. I like to swap them out for benchmarking and make sure its the same code running for all. I have supported Ceres, G2O, SPA, and GTSAM.

GTSAM/G2O/SPA is currently "unsupported" although all the code is there. They don't outperform Ceres settings I describe below so I stopped compiling them to save on build time, but they're there and work if you would like to use them. PRs to implement other optimizer plugins are welcome.

Map Merging

Kinematic

This uses RVIZ and the plugin to load any number of posegraphs that will show up in RVIZ under map_N and a set of interactive markers to allow you to move them around. Once you have them all positioned relative to each other in the way you like, you can merge the submaps into a global map which can be downloaded with your map server implementation of choice.

More information in the RVIZ Plugin section below.

Pose Graph Merging

This is under development.

This is to solve the problem of merging many maps together with an initial guess of location in an elastic sense. This is something you just can't get if you don't have the full pose-graph and raw data to work with -- which we have from our continuous mapping work.

Hint: This is also really good for multi-robot map updating as well :)

Optimization based

This uses RVIZ and the plugin to load any number of posegraphs that will show up in RVIZ under map_N and a set of interactive markers to allow you to move them around. Once you have them all positioned relative to each other in the way you like, it will use these relative transforms to offset the pose-graphs into a common frame and minimize the constraint error between them using the Ceres optimizer. You can merge the submaps into a global map which can be downloaded with your map server implementation of choice. Think of this like populating N mappers into 1 global mapper.

Using just kinematic placement of the maps will give you some improvements over an image stiching/editing software since you have sub-pixel accuracy, but you're still a little screwed if your submaps aren't globally consistent and unwarped - this is an intermediate to help with that until the pose-graph merging tool is complete.

RVIZ Plugin

An rviz plugin is furnished to help with manual loop closures and online / offline mapping. By default interactive mode is off (allowing you to move nodes) as this takes quite a toll on rviz. When you want to move nodes, tick the interactive box, move what you want, and save changes to prompt a manual loop closure. Clear if you made a mistake. When done, exit interactive mode again.

There's also a tool to help you control online and offline data. You can at any time stop processing new scans or accepting new scans into the queue. This is desirable when you want to allow the package to catch up while the robot sits still (This option is only meaningful in sychronous mode. In asynchronous mode the robot will never fall behind.) or you want to stop processing new scans while you do a manual loop closure / manual "help". If there's more in the queue than you want, you may also clear it.

Additionally there's exposed buttons for the serialization and deserialization services to load an old pose-graph to update and refine, or continue mapping, then save back to file. The "Start By Dock" checkbox will try to scan match against the first node (assuming you started at your dock) to give you an odometry estimate to start with. Another option is to start using an inputted position in the GUI or by calling the underlying service. Additionally, you can use the current odometric position estimation if you happened to have just paused the robot or not moved much between runs. Finally (and most usefully), you can use the RVIZ tool for 2D Pose Estimation to tell it where to go in localization mode just like AMCL.

Additionally the RVIZ plugin will allow you to add serialized map files as submaps in RVIZ. They will be displayed with an interactive marker you can translate and rotate to match up, then generate a composite map with the Generate Map button. At that point the composite map is being broadcasted on the /map topic and you can save it with the map_saver.

It's recommended to always continue mapping near the dock, if that's not possible, look into the starting from pose or map merging techniques. This RVIZ plugin is mostly here as a debug utility, but if you often find yourself mapping areas using rviz already, I'd just have it open. All the RVIZ buttons are implemented using services that a master application can control.

The interface is shown below.

rviz_plugin

Graph Manipulation

By enabling Interactive Mode, the graph nodes will change from markers to interactive markers which you can manipulate. When you move a node(s), you can Save Changes and it will send the updated position to the pose-graph and cause an optimization run to occur to change the pose-graph with your new node location. This is helpful if the robot gets pushed, slips, runs into a wall, or otherwise has drifting odometry and you would like to manually correct it.

When a map is sufficiently large, the number of interactive markers in RVIZ may be too large and RVIZ may start to lag. I only recommend using this feature as a testing debug tool and not for production. However if you are able to make it work with 10,000 interactive markers, I'll merge that PR in a heartbeat. Otherwise I'd restrict the use of this feature to small maps or with limited time to make a quick change and return to static mode by unchecking the box.

Metrics

If you're a weirdo like me and you want to see how I came up with the settings I had for the Ceres optimizer, see below.

ceres_solver_comparison

The data sets present solve time vs number of nodes in the pose graph on a large dataset, as that is not open source, but suffice to say that the settings I recommend work well. I think anyone would be hardset in a normal application to exceed or find that another solver type is better (that super low curve on the bottom one, yeah, that's it). Benchmark on a low power 7th gen i7 machine.

It can map very large spaces with reasonable CPU and memory consumption. My default settings increase O(N) on number of elements in the pose graph. I recommend from extensive testing to use the SPARSE_NORMAL_CHOLESKY solver with Ceres and the SCHUR_JACOBI preconditioner. Using LM at the trust region strategy is comparable to the dogleg subspace strategy, but LM is much better supported so why argue with it.

You can get away without a loss function if your odometry is good (ie likelihood for outliers is extremely low). If you have an abnormal application or expect wheel slippage, I might recommend a HuberLoss function, which is a really good catch-all loss function if you're looking for a place to start. All these options and more are available from the ROS parameter server.

Configuration

The following settings and options are exposed to you. My default configuration is given in config directory.

solver_plugin - The type of nonlinear solver to utilize for karto's scan solver. Options: solver_plugins::CeresSolver, solver_plugins::SpaSolver, solver_plugins::G2oSolver. Default: solver_plugins::CeresSolver.

ceres_linear_solver - The linear solver for Ceres to use. Options: SPARSE_NORMAL_CHOLESKY, SPARSE_SCHUR, ITERATIVE_SCHUR, CGNR. Defaults to SPARSE_NORMAL_CHOLESKY.

ceres_preconditioner - The preconditioner to use with that solver. Options: JACOBI, IDENTITY (none), SCHUR_JACOBI. Defaults to JACOBI.

ceres_trust_strategy - The trust region strategy. Line searach strategies are not exposed because they perform poorly for this use. Options: LEVENBERG_MARQUARDT, DOGLEG. Default: LEVENBERG_MARQUARDT.

ceres_dogleg_type - The dogleg strategy to use if the trust strategy is DOGLEG. Options: TRADITIONAL_DOGLEG, SUBSPACE_DOGLEG. Default: TRADITIONAL_DOGLEG

ceres_loss_function - The type of loss function to reject outlier measurements. None is equatable to a squared loss. Options: None, HuberLoss, CauchyLoss. Default: None.


minimum_time_interval - Minimum time between scans to add to scan queue. Default 0.5 seconds.

map_update_interval - Interval to update the map topic and pose graph visualizations. Default 10 seconds.

All other parameters, see SlamKarto documentation. They're all just the inputs to OpenKarto so that documentation would be identical as well.

Install

ROSDep will take care of the major things

rosdep install -q -y -r --from-paths src --ignore-src

I also have a Snap built for this that's super easy to install if you know snaps, named slam-toolbox.

sudo snap install slam-toolbox --beta --devmode

Run your catkin build procedure of choice.

You can run via roslaunch slam_toolbox online_sync.launch

Etc

NanoFlann!

In order to do some operations quickly for continued mapping and localization, I make liberal use of NanoFlann (shout out!).

Brief incursion into snaps

Snap are completely isolated containerized packages that one can run through the Canonical organization on a large number of Linux distributions. They're similar to Docker containers but it doesn't share the kernel or any of the libraries, and rather has everything internal as essentially a seperate partitioned operating system based on Ubuntu Core.

We package up slam toolbox in this way for a nice multiple-on speed up in execution from a couple of pretty nuanced reasons in this particular project, but generally speaking you shouldn't expect a speedup from a snap.

Since Snaps are totally isolated and there's no override flags like in Docker, there's only a couple of fixed directories that both the snap and the host system can write and read from, including SNAP_COMMON (usually in /var/snap/[snap name]/common). Therefore, this is the place that if you're serializing and deserializing maps, you need to have them accessible to that directory.

You can optionally store all your serialized maps there, move maps there as needed, take maps from there after serialization, or do my favorite option and link the directories with ln to where ever you normally store your maps and you're wanting to dump your serialized map files.

Example of ln:

#           Source                           Linked
sudo ln -s /home/steve/maps/serialized_map/ /var/snap/slam-toolbox/common

and then all you have to do when you specify a map to use is set the filename to slam-toolbox/map_name and it should work no matter if you're running in a snap, docker, or on bare metal. The -s makes a symbol link so rather than /var/snap/slam-toolbox/common/* containing the maps, /var/snap/slam-toolbox/common/serialized_map/* will. By default on bare metal, the maps will be saved in .ros

Notes for documentation to fill in later

  • Dock starting, mapping, continuing example
  • Cloud mapping example
  • Mapping from an estimated starting pose example (via amcl)
