rqt_lifecycle_manager

Overview

rqt_lifecycle_manager is an [rqt] plugin to inspect and control ROS 2 lifecycle nodes from a graphical interface. It lets you:

• List all lifecycle nodes currently present on the graph (auto-discovered).

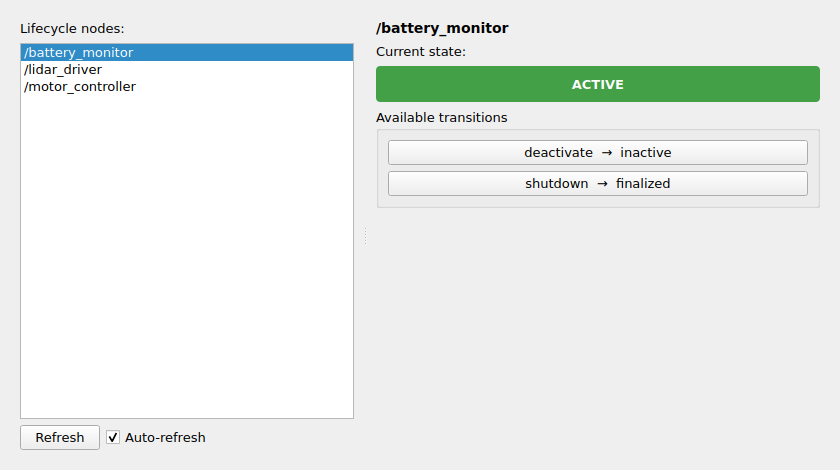

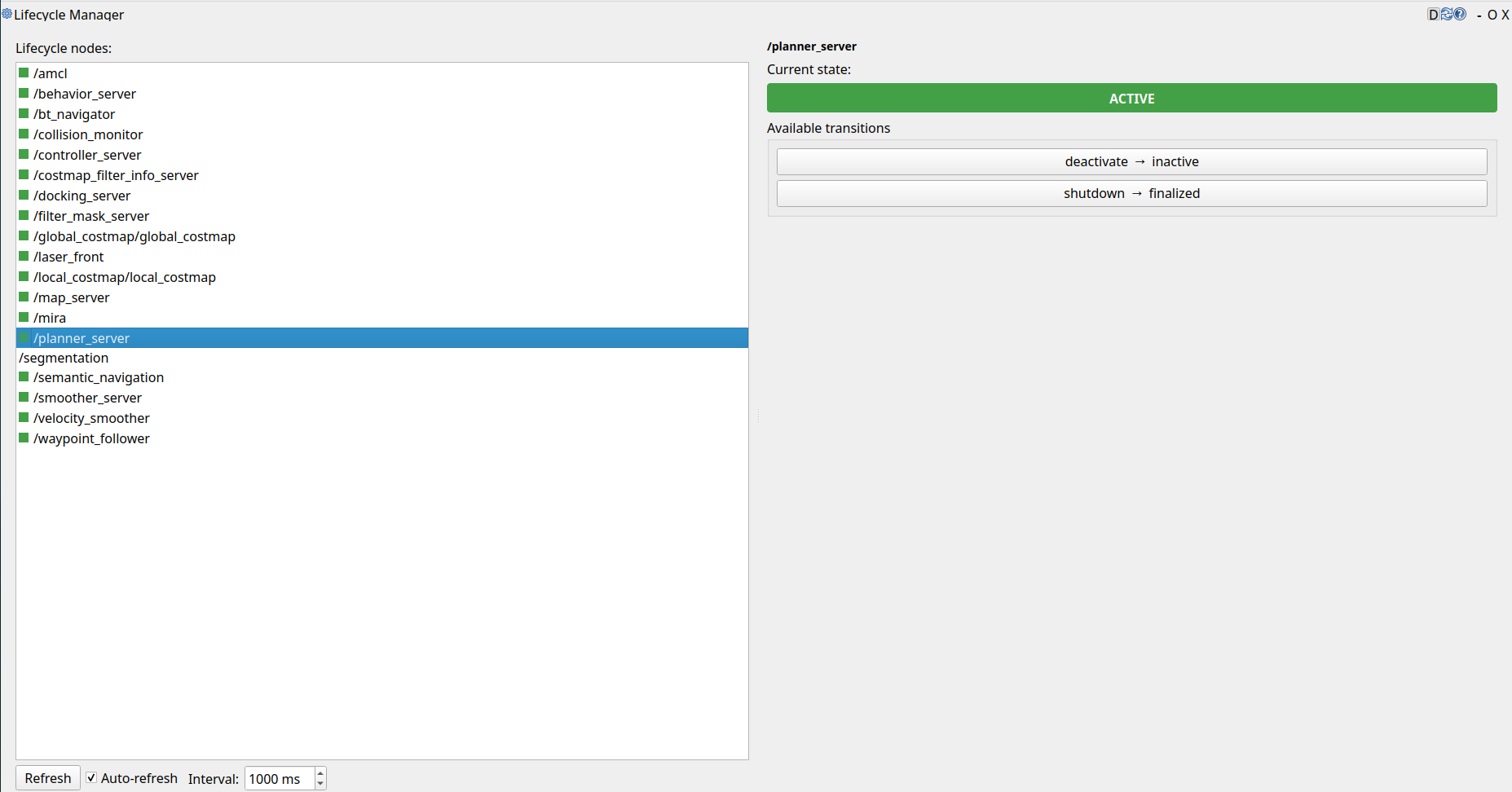

• See the current state of the selected node, color-coded.
• Change to any available state through dynamically generated buttons (only valid transitions for the current state are shown).

The interface never blocks: every ROS 2 service call is issued asynchronously and its result is delivered back to the Qt GUI thread through signals, so the window stays responsive even if a node is slow to transition or does not answer at all.

Keywords: ROS2, rqt, lifecycle, lifecycle_msgs, state machine, GUI

Author: Alberto Tudela

The package has been tested under ROS2 Jazzy on Ubuntu 24.04. This is research code, expect that it changes often and any fitness for a particular purpose is disclaimed.

How it works

ROS 2 lifecycle nodes expose their [managed state machine][lifecycle] through three services: ~/get_state, ~/get_available_transitions and ~/change_state. This plugin:

1. Discovers lifecycle nodes with a fast, local graph query (get_service_names_and_types), filtering for nodes that offer a ~/get_state service of type lifecycle_msgs/srv/GetState.
2. Queries the selected node’s state and available transitions.
3. Requests a transition when you press a button.

All service calls use call_async. The plugin reuses the ROS 2 node that rqt_gui_py already spins in a background executor thread, so responses are processed off the GUI thread and marshaled back with Qt signals. The result is a non-blocking UI by design.

Installation

Building from Source

Dependencies

• Robot Operating System (ROS) 2 (middleware for robotics)
• rqt_gui, rqt_gui_py, python_qt_binding (rqt framework)
• lifecycle_msgs (lifecycle service and message types)

Building

To build from source, clone the latest version from this repository into your colcon workspace and compile the package using:

cd colcon_workspace/src
git clone https://github.com/ajtudela/rqt_lifecycle_manager.git
cd ../
rosdep install -i --from-path src --rosdistro jazzy -y
colcon build --symlink-install

Usage

Source your workspace, then launch it in one of two ways.

Inside the generic rqt container (Plugins → Lifecycle → Lifecycle Manager):

rqt

Or as a standalone window:

ros2 run rqt_lifecycle_manager rqt_lifecycle_manager

Trying it out

Bring up any lifecycle node, for example the demo talker:

ros2 run lifecycle_py lifecycle_talker   # or any of your lifecycle nodes

It will appear in the node list. Select it, and use the transition buttons (configure, activate, deactivate, cleanup, shutdown, …) to move it through its states. The state label updates automatically, even when the node is transitioned from another tool.

Nodes

This package does not provide a runtime node; it provides an rqt plugin. The plugin acts as a client of the standard lifecycle services of every managed node:

Services called (per managed node)

• <node>/get_state (lifecycle_msgs/srv/GetState) Reads the current lifecycle state.

• <node>/get_available_transitions (lifecycle_msgs/srv/GetAvailableTransitions) Lists the transitions valid from the current state.

• <node>/change_state (lifecycle_msgs/srv/ChangeState) Triggers a lifecycle transition.
