MoveIt Visual Tools

Helper functions for displaying and debugging MoveIt data in Rviz via published markers, trajectories, and MoveIt collision objects. It is sometimes hard to understand everything that is going on internally with MoveIt, but using these quick convenience functions allows one to easily visualize their code. This package is built in top of rviz_visual_tools and all those features are included via class inheritance.

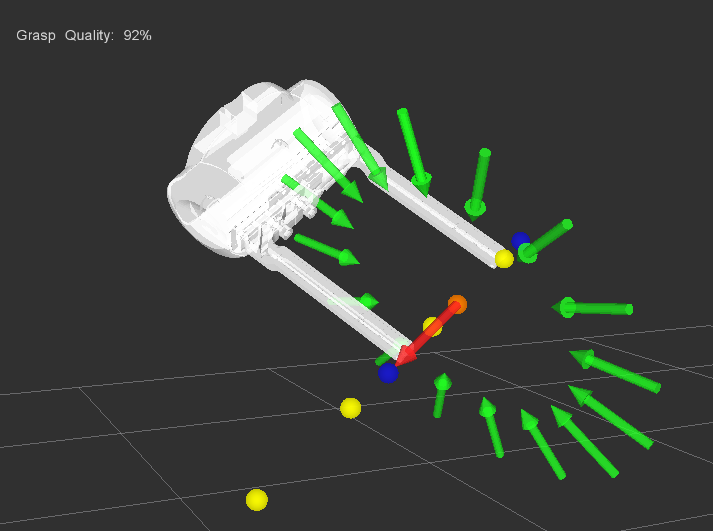

This package helps you visualize:

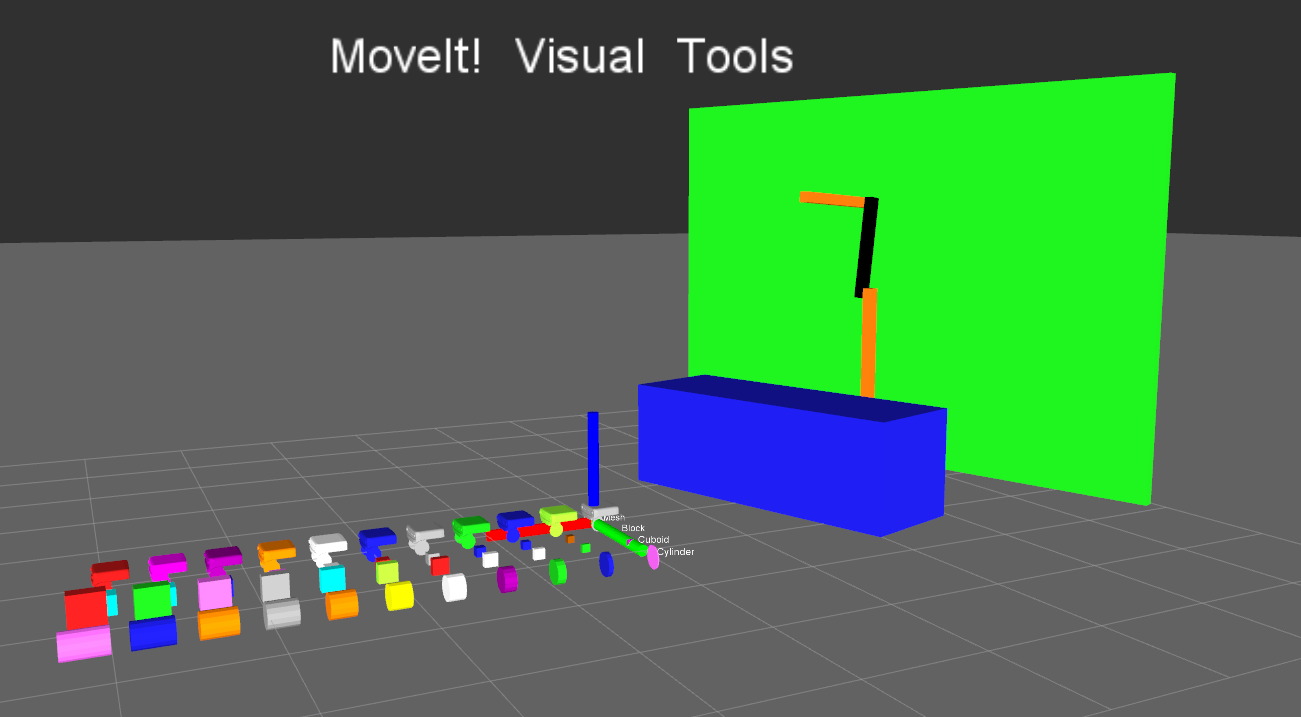

  • Basic Rviz geometric shapes
  • MoveIt collision objects
  • MoveIt and ROS trajectories
  • Robot states
  • End effectors
  • Interactive markers to move robot arms using IK from remote applications

This open source project was developed at PickNik Robotics. Need professional ROS development and consulting? Contact us at projects@picknik.ai for a free consultation.

Status:

ROS:

  • Build and Test Formatting Github Actions
  • Build Status ROS Buildfarm - AMD64 Focal Source Build - Ubuntu 20.04 LTS
  • Build Status ROS Buildfarm - AMD64 Focal Devel Build - Ubuntu 20.04 LTS

ROS2:

  • Build and Test GHA: Build and Test
  • Formatting GHA: Formatting

ROS2 Install

Install From Source

Install moveit2 following the instructions here. After sourcing the moveit workspace clone this repository into a colcon workspace, import and install dependencies and build:

source ~/ws_moveit/install/setup.bash
cd $COLCON_WS/src
git clone -b ros2 https://github.com/ros-planning/moveit_visual_tools
vcs import < moveit_visual_tools/moveit_visual_tools.repos
rosdep install -r --from-paths . --ignore-src --rosdistro foxy -y
cd $COLCON_WS
colcon build --event-handlers desktop_notification- status- --cmake-args -DCMAKE_BUILD_TYPE=Release

Quick Start Demo

To run some demos displaying robot states and collision objects:

ros2 launch moveit_visual_tools demo_rviz.launch.py

Code API

See VisualTools Class Reference

Usage

We’ll assume you will be using these helper functions within a class.

Initialize

Add to your includes:

#include <moveit_visual_tools/moveit_visual_tools.h>

Add to your class’s member variables:

// For visualizing things in rviz
moveit_visual_tools::MoveItVisualToolsPtr visual_tools_;

In your class’ constructor add:

visual_tools_ = std::make_shared<moveit_visual_tools::MoveItVisualTools>(node_, "world", "/moveit_visual_tools");

Collision Object Functions

Helpers for adding and removing objects from the MoveIt planning scene. CO stands for Collision Object and ACO stands for Active Collision Object.

  • cleanupCO
  • cleanupACO
  • attachCO
  • publishCollisionBlock
  • publishCollisionCylinder
  • publishCollisionTree
  • publishCollisionTable
  • publishCollisionWall

And more…

Animate Trajectories

Higher level robot and trajectory functions

  • publishTrajectoryPath
  • publishTrajectoryPoint

File truncated at 100 lines see the full file
